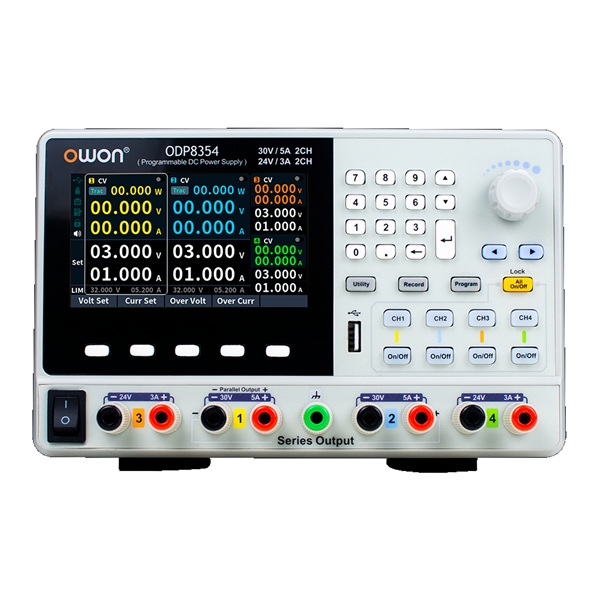

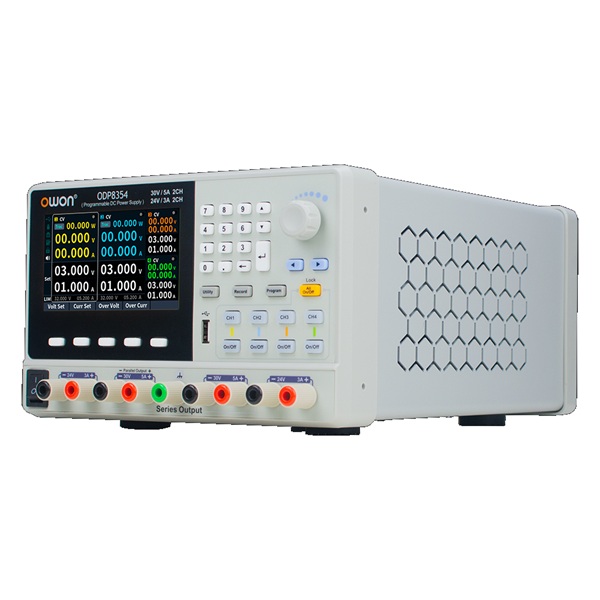

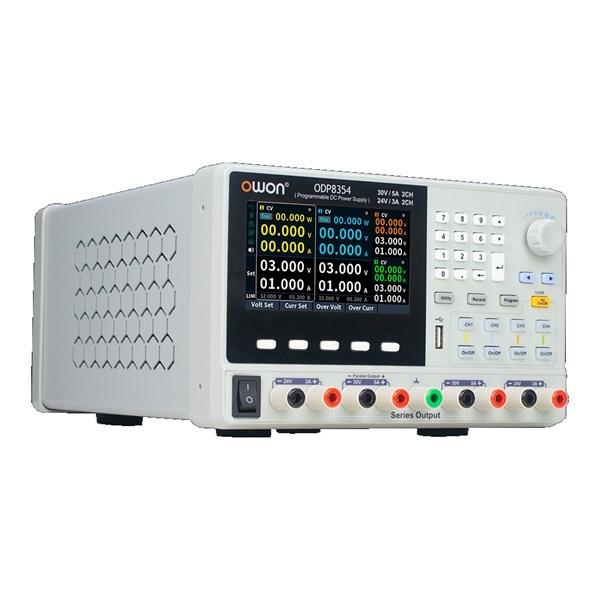

OWON ODP8354 Programmable DC Power Supply

SKU: ODP854
Rs. 39,210.00 MRP Rs. 44,000.00 Save Rs. 4,790.00 (11% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.



  • 3 or 4-channel independent adjustable output channels; CH1 and CH2 support series/parallel connection
  • CH1/CH2: 5A / 90W constant power; CH3/CH4: 3A / 24W constant power
  • 5-digit voltage/current display with 1mV / 1mA resolution
  • Low ripple and noise: ≤1mVrms / 5mVpp
  • OVP, OCP, OTP, OPP protection for safety and reliability
  • Intelligent CV/CC mode switching
  • Supports 100 sets of timed output sequences
  • Remote voltage sensing supported
  • Built-in data logger for displaying voltage, current, and power in table or waveform format
  • System parameter save/recall, with expandable data storage
  • 4.3-inch (480*272) IPS screen for sharp and vivid display
  • Supports USB 2.0, RS232, and LAN communication interfaces



Product information

Everything you need to know

Technical Specifications

Output Ratings 4 (independent controllable channel)

Voltage / Current CH1: 30V/5A, Maximum 90W constant power output

CH2: 30V/5A, Maximum 90W constant power output

CH3: 24V/3A, Maximum 24W constant power output

CH4: 24V/3A, Maximum 24W constant power output

CH1, CH2 Parallel Voltage / Current 60V/5A, 180W constant power output

CH1, CH2 Series Voltage / Current 30V/10A, 180W constant power output

Max output power 228W

Settings Resolution 1mV/1mA

Read Back Resolution 1mV/1mA

Settings Accuracy (Within 12 months) (25℃±5℃)

Voltage Independent：±（0.03% of reading+10) mV；Parallel：±（0.03% of reading+10) mV；

Series：±（0.06% of reading+20) mV

Programmable output

Storage 1M points; 100 groups

Time setting Second

Voltage Voltage ≤0.01%+3mV

Regulation Current ≤0.01%+3mA

Current Independent：±（0.1% of reading+5) mA；Parallel：±（0.2% of reading+20) Ma;

Series：±（0.1% of reading+5) mA

Data Record Function 10k groups of data (voltage, current, power)

Working temperature 0-40℃

Ports USB Host, USB Device, RS232, LAN, supports USB TMC protocol

Display 4.3 inch IPS LCD

Dimensions 290mm（W）*130mm（H）*212mm（D）

Device weight ≈9kg

Warranty
As per Brand policy

Recommended Uses

Industrial uses
