UNI-T UDP3305S-E 3-CH Output Programmable DC Power Supply
Output Voltage/Current:
- CH1/CH2: 0~32V, 5A
- CH3: 0~6V, 0-3A
- CH 4:5V, 2A (USB)
Total Power: 348W
LCD interactive interface
Using a 4.3-inch high-definition display screen, it provides users with a man-machine interface with rich functions and simple operation, which can display the current set output voltage/current, actual output voltage/current and protection output voltage/current value of the power supply in real time.
One-key setting for series and parallel
The series-parallel connection between CH1 and CH2 of the main channel can be realized without external connection, which simplifies the connection and makes the test easier.
Rich remote control interface

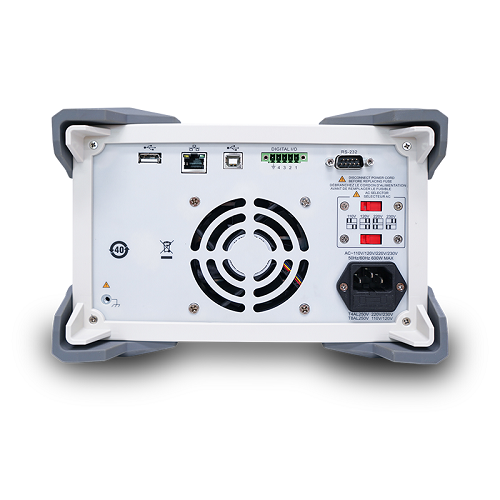

Standard RS232 communication interface, Ethernet interface, Digital I/O and master and slave USB interfaces, can be controlled by remote connection to Ethernet, or through RS232 and USB, with the host computer software to achieve software control.
List/Delayer function
With list and delay setting functions, it can set up to 2048 sets of data according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cycle testing and aging testing.
Waveform Display
UDP3000 Sseries power supply has waveform display function, which can intuitively display the change trend of voltage, current and power Provide users with better operation experience.
ToolWorld is Authorized UNI-T Distributor
Includes calibration/conformity report
Rs. 55,000.00 /each Save Rs. 6500 (12% Off)
Rs. 48,500.00 /each (Incl )
