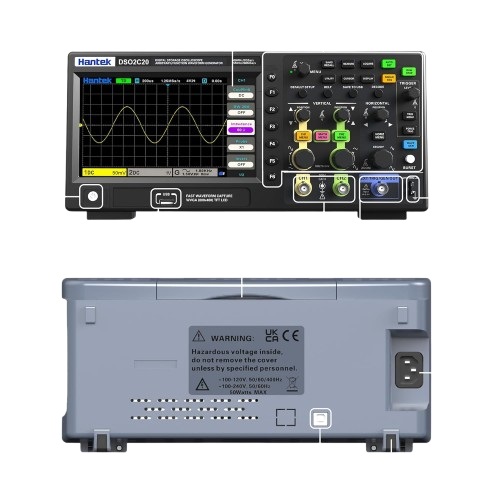

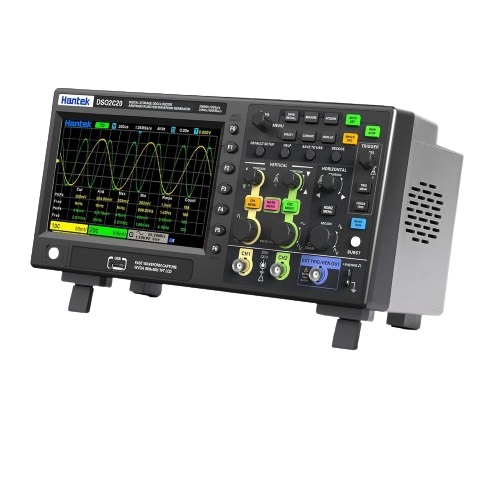

Model DSO2C20
Analog Bandwidth 200MHz
Rising Time (typical) ≤1.75ns
No. of Input/Output Channels 2 analog channel inputs; 1 signal generator channel output (DSO2D20 series)
EXT Channel Input 1 EXT channel input
Sampling Mode Real-time sampling
Max. Sample Rate of Analog Channel 2GSa/s (single-channel)，1GSa/s (all channels)
Max. Memory Depth 80Kpts (single-channel)，40Kpts (all channels)
Peak Detection Under all the time base settings, capture 1ns glitches
LCD Size and Type 7-inch capacitive multi-touch screen
Display Resolution 800 × 480
Vertical System Analog Channel
Input Coupling DC, AC, GND
Input Impedance 1MΩ±1%，50Ω±1%
Input Capacitance 17pF±3pF
Maximum Input Voltage 1MΩ CAT I 300 VRMS，400 Vpk
50Ω 5VRMS
Vertical Resolution 8bit
Vertical Sensitivity Range 1MΩ 500uV/div ~ 10V/div
50Ω 500uV/div ~ 1V/div
Offset Range 1MΩ ±1V (500uV/div ~ 50 mV/div)
±10V(100mV/div ~ 500 mV/div)
±100 V (1V/div ~ 10 V/div)
50Ω ±1V(500uV/div ~ 50 mV/div)
±10V(100mV/div ~ 500 mV/div)
±100V(1 V/div )
Dynamic Range ±5div ( 8bit )
Bandwidth Limit (Typical) 20MHz,100MHz,200MHz,350MHz; selectable for each channel
DC Gain Accuracy ±3%FullScale
DC Offset Accuracy <200mV/div (±0.1div±2mV±1.5%of offset value)
>200mV/div (±0.1div±2mV±1.0%of offset value)
Channel-to-Channel Isolation 40dB, from DC to maximum rated bandwidth of each model
Horizontal System--Analog Channel
Range of Time Base 2ns/div~1ks/div
Time Base Accuracy ±50ppm
Time Interval (△T) Measurement±(1 sample interval)±(50ppm××readout)±50ps
Horizontal Mode YT Default
XY X1 = Channel1，Y1 = Channel2
SCAN Time base≥100ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
ROLL Time base≥100ms/div, available to enter or exit ROLL mode through HORIZ MENU menu
Arbitrary Waveform Generator
Sample Rate 200MSa/s
Vertical Resolution 12bit
Max. Frequency 25MHz
Standard Waveform Sine, Square, Ramp, Exp, Noise, DC
Arb Arb1, Abr2, Arb3, Arb4
Waveform Length 4K
Output Impedance 50Ω ± 1%
