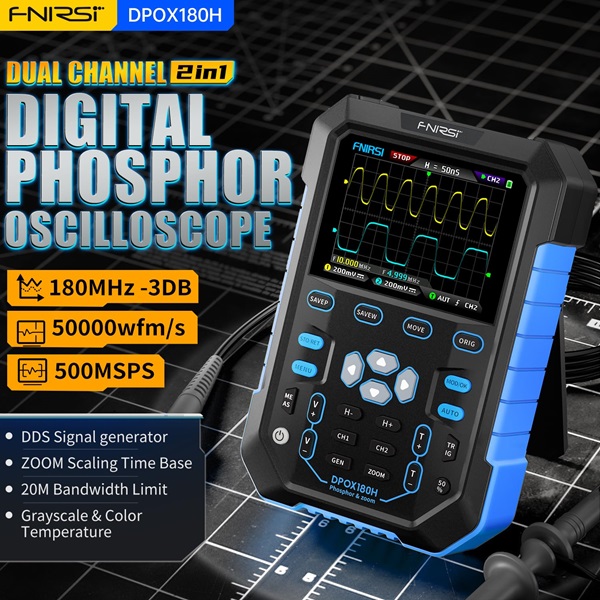

Nummer of channels 2
Analog bandwidth 180 MHz
Maximum sampling rate 500 MS/s
Input coupling DC/AC
Rise time 2.5s
Storage depth 120 Kpts
Input impedance 1 MQ-18 PF
Vertical sensitivity 5 mV-10 V (1X)
Time base range 5 nS~50 S
DC accuracy ±2%
Time accuracy +0.01%
Trigger detection Digital trigger
Trigger mode Auto/Single/Normal
Trigger edge Rising/Falling
Measurement range 40 mV~80 V (1X)
Screenshot storage 90
Capture signal 500
Screen size 2.8 inch
Screen resolution 320 x 240
Display technology IPS full view
Expansion interface USB transmission interface
Auto power off 5 minutes - 2 hours
Firmware upgrade Supported iso image upgrade
Charging requirements 5 V/2 A

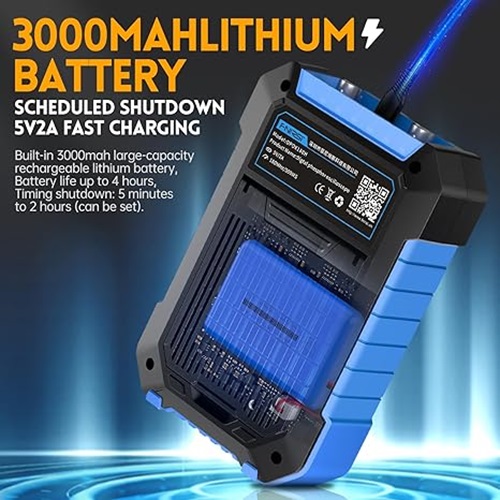

Battery capacity 3000 mAh
Standby time 3.5 hours at full charge
Signal Generator 14 standard function signals
Waveform storage 250 groups
Parameter measurement 12 kinds
Dimensions 135 x 90 x 40 mm
Warranty:
As per brand policy
