OWON HDS2202S Handheld Digital Oscilloscope- 200 Mhz

Oscilloscope + multimeter + waveform generator, multifunction in one
3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
18650 lithium battery, can work continuously for 3-6 hours
USB Type-C interface, support power bank, support PC software connection
Self-calibration function
SCPI supported, facilitate secondary development
200Mhz, 1 GS/a, 2 Channel

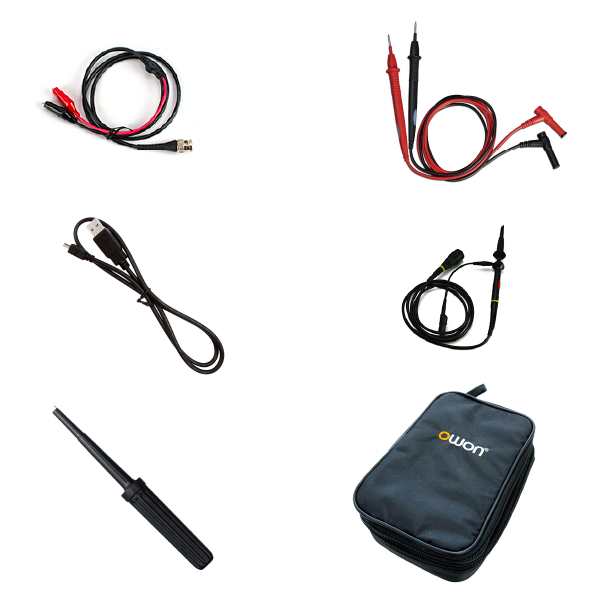

Accessories Include:

USB Cable
Multimeter Leads
Soft Bag
Probe
Probe Adjust
Quick Guide
BNC to Alligator Clip

Technical Documents - 1

Rs. 39,900.00 /each Save Rs. 8950 (23% Off)

Rs. 30,950.00 /each (Incl )

Quantity

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: China

29 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Oscilloscope specifications

Bandwidth: 200 Mhz

Sample rate	1 GSa/s
Memory depth	8 kpts
Vertical resolution	8 bit
Trigger types	Edge
Waveform capture rate	10 000 wfms/s
Rise time	≤5 ns typ.
Vertical scale	10 mV/div - 10 V/div
Horizontal scale	5 ns/div - 1000 s/div
Measuring parameters (vertical)	Vmax, Vmin, Vpp, Mean, Amplitude
Measuring parameters (horizontal)	Period, Freq

Multimeter mode specifications

Specifications	Range	Accuracy (smallest range)
DC voltage	0.01 mV - 1000 V	±0.5% + 5
AC voltage	0.01 mV - 750 V	±0.8% + 5
DC current	10 μA - 10 A	±0.8% + 2
AC current	10 μA - 10 A	±1% + 5
Resistance	0.01 Ω - 100 MΩ	±0.8% + 3
Capacitance	1 pF - 2 mF	±3% + 10

Function Generator

Frequency Output	Sine	0.1Hz - 25MHz
	Square	0.1Hz - 5MHz
	Ramp	0.1Hz - 1MHz
	Pulse	0.1Hz - 5MHz
	Arbitrary	0.1Hz - 5MHz
Sampling Rate	125MSa/s
Channel	1-CH
Amplitude Range (high impedance)	20 mVpp - 5 Vpp
Waveform Length	8K
Vertical Resolution	14bits
Output Impedance	50Ω

Warranty: 1 Year Warranty
