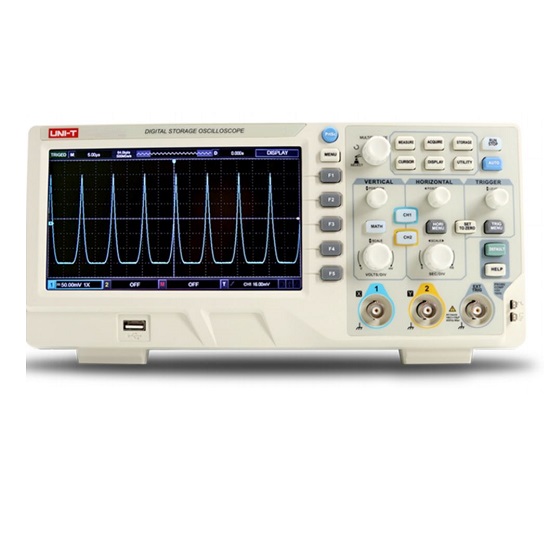

UNI-T UTD2102CL+ Digital Storage Oscilloscope

The UTD2000CL+ Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive,fully in line with the traditional instrument usage habits, and is convenient for users to operate

Bandwidth: 100MHz
Measurement channel: 2 analog channels
Real-time sampling rate: 500MS/S
Storage depth: 64kpts
Waveform capture rate: 5,000wfms/s

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Technical Documents - 1

Rs. 27,500.00 /each Save Rs. 7505 (28% Off)

Rs. 19,995.00 /each (Incl GST-18%)

Technical Specifications

Bandwidth: 100MHz
Measurement channel: 2 analog channels
Real-time sampling rate: 500MS/S
Storage depth: 64kpts
Waveform capture rate: 5,000wfms/s
Auto measurement: 34 waveform types
Abundant trigger: Edge * Pulse width * Slope trigger * Video trigger * Alternating trigger <>
Display:7-inch WVGA (800X 480) TFT LCD, super-widescreen, clean display
Peripheral interface: Standard USB Host, USB Device, EXT Trig,Pass/Fail
New Autoset function: Customized auto strategy to facilitate oscilloscope teaching
Size 306mm(W) x 138(H) x 124 mm(D)
Weight Excluding package:2.5kg Including package: 3kg
Power voltage 100V-240V , 50/60HZ Power consumption 100VA max Fuse F 1.6A 250V

Please email us at support@toolworld.in to request for detailed data sheet

Warranty: 1 Year

Uses

Ideal for beginners and professionals. Performance Oscilloscope on a budget
