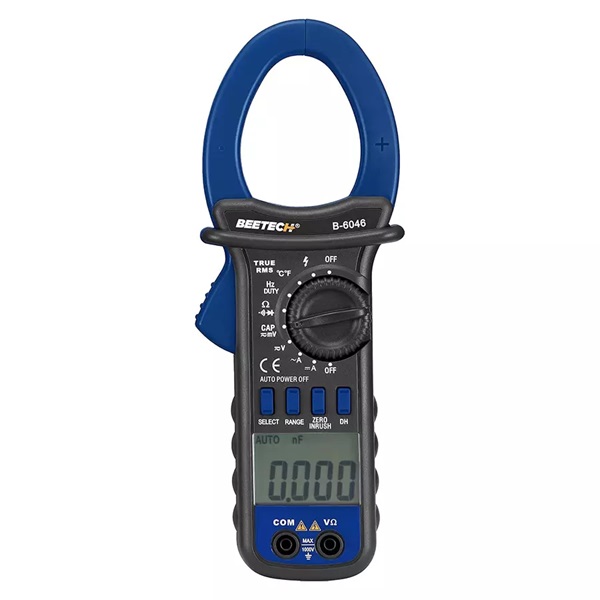

Beetech B-6046 700V Digital Clamp Meter

B-6046 operates with a high performance MCU Processor. It is of great value and has high reliability, security, automatically setting range function. The product has a large digital display, full range, overload protection, data hold function, undervoltage indication, auto shut off function. It has TRUE RMS measurement function which can accurately measure frequency voltage, non sinusoidal voltage and inrush current measurement function which can measure inrush current about 80mS RMS. It also has temperature measurement function which can accurately measure 50 C ~ 1000 C. The instrument is suitable for frequency converting power supply, air conditioning, refrigeration equipment such as refrigerators, motor performance test. The Function to measure DC Current range is widely used in electroplating, DC welding machine, motor vehicle test and all kinds of DC 2A current measurement. This instrument complies with the safety requirements of ICE61010 1. It is excellent for new generation of practical electrical measuring instrument.

Display: LCD
4000 Counts
3 ¾ Digits
AC & DC Voltage
AC & DC Current
DC Amps Auto Zero
Max Jaw Size 52 MM
True-RMS
Inrush Current
Resistance
Capacitance
Frequency
Temperature
Auto Negative polarity indication: Displaying “-”
Continuity Buzzer
Duty Cycle
Data Hold
Diode Test
Large LCD Display
Low Battery Indication
Auto Power Off

Technical Documents - 1

Rs. 6,999.00 /each Save Rs. 1179 (17% Off)

Rs. 5,820.00 /each (Incl GST-18%)

Technical Specifications

Type of Product Digital Clamp Multimeter

Display Counts 4000

Jaw Opening Size 52 mm

Model No B-6046

Power Source Battery Source

Voltage (AC) 700 V

Material Plastic

Display Type 3¾ Digit LCD Display

AC Current (A) 1000 A

Type True-RMS

Measures Temperature, Resistance, Capacitance, Frequency

measurement Voltage 1000 V DC

Measurement Current 1000 Amp AC/DC

Warranty: As per Brand policy

Uses

The instrument is suitable for frequency converting power supply, air conditioning, refrigeration equipment such as refrigerators, motor performance test.
