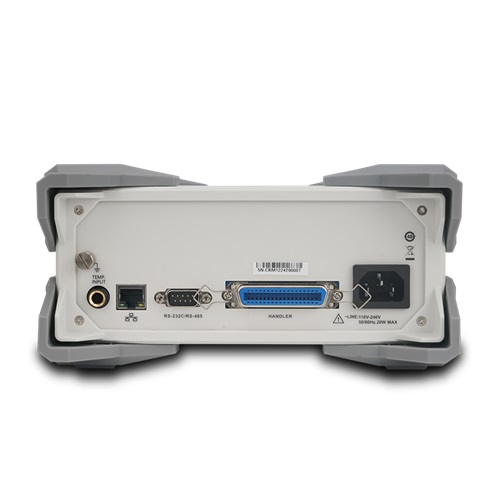

The UT3510+ series of benchtop Micro Ohm Meter includes the UT3513+ and UT3516+ models. 4.3-inch LCD display. With high precision, high resolution and high-speed measurement characteristics, with the highest accuracy of 0.05%, the minimum resolution of 1 μΩ. UT3516 + standard RS-232C, RS485, LAN port and HANDLER communication interface, support for SCPI and MODBUS RTU protocols, and can be with the computer, PLC or WINCE device communication, and efficiently complete the remote control and data acquisition functions.
Quantity
Dispatched (in Days): Same day dispatch
Minimum Order Quantity: 1 pcs
Country of Origin: N/A
MODEL UT3516+
MEASURING RANGE 1μΩ~2MΩ
MAX. TEST RATE 100rdgs/s
CONNECTIVITY RS232，RS485，HANDLER，LAN
SIZE ½ 2U
DISPLAY 4.3'' TFT LCD
Warranty: 3 Years
Industrial uses
Min Qty: 1 pieces
