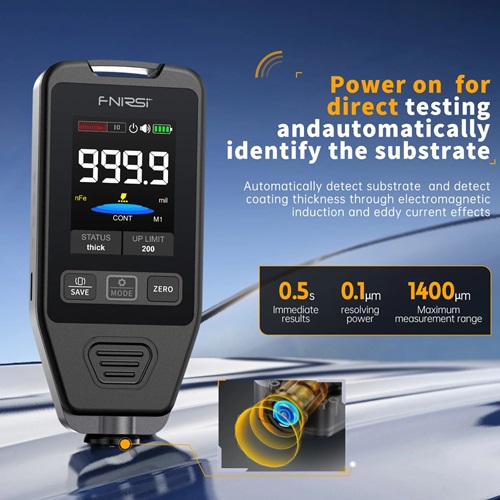

Probe Type Magnetic induction & eddy current auto-induction probes for magnetic/non-magnetic materials
Measuring range 0~1400μm(±3%+2μm); resolution: 0.1μm;
Measuring capability MIN area diameter 20mm; MIN convex radius25mm; MIN concave radius 25mm
Measurement time 0.5s
Measurement mode Point measurement and Rapid continuous measurement
Measurement statistics Minmum/ Average/Maximum and mode of single Maximum measurement
Calibration zero point /multi-point calibration
Display 2.0-inch IPS color screen
Work temperature -10~50℃
Work humidity 20%`90%
Warranty:
As per Brand policy
It can measure the thickness of non-magnetic coatings and paintings on the surface of magnetic or non-magnetic materials such as steel, iron and aluminium etc.
