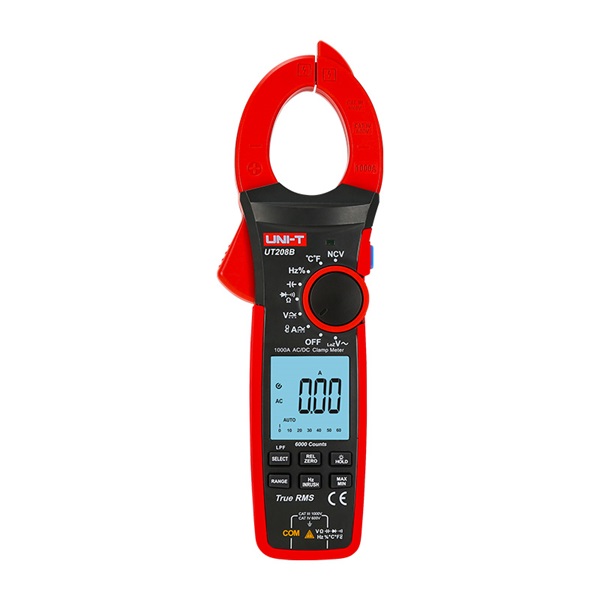

Specifications Range UT208B
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response 40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 1000V ±(1.2%+3)
DC voltage (V) 1000V ±(0.5%+5)
Low pas filter (LPF ACV) 1000V ±(2%+5)
AC voltage frequency response 40Hz~400Hz
LoZ ACV 1000V ±(2%+5)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature -40℃~1000℃ ±(1%+2)
-40℉~1832℉ ±(1%+4)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Analog bar 31
Flexible current probe (optional) Extends up to 3000A √
Zero mode √
Display count 6000
Jaw opening 42mm
Warranty:
As per brand policy
Voltage and NCV Measurement
