Brand FNIRSI

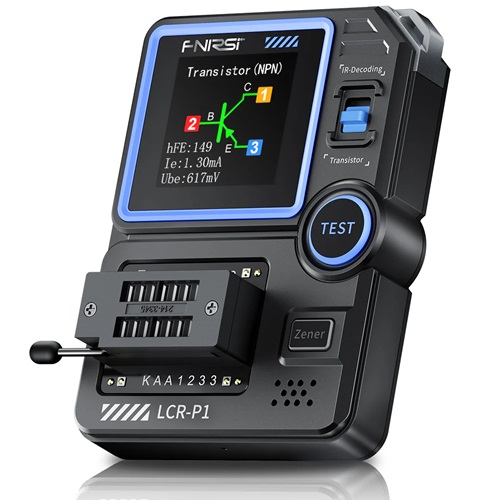

Model LCR-P1
Dimensions 13x8.5x4.5mm
Power Supply Battery
Display Type Digital Only
Transistor range 10 < B < 600
Capacitance Range 25pF-100mF
Inductance range 10μh-1000μh
Resistance Range 0.01Ω-50MΩ
Diode Forward voltage < 4.5V
Voltage Regulator Diode 0.01-4.5V / 0.01-32V
Field-Effect Transistor JFET / IGBT / MOSFET
Bidirectional Thyristor Turn-on voltage < 5V, Gate trigger current < 6mA
IR Decoding NEC protocol IR code
Display 1.44'' Color Screen
Power Supply 300mAh lithium battery
Operating Temperature 0~40℃
Charging USB Type-C, 5V/1A
Anti-burn protection supported
Data Export supported
Firmware upgrade supported
Warranty:
As per brand policy
