Technical Specifications

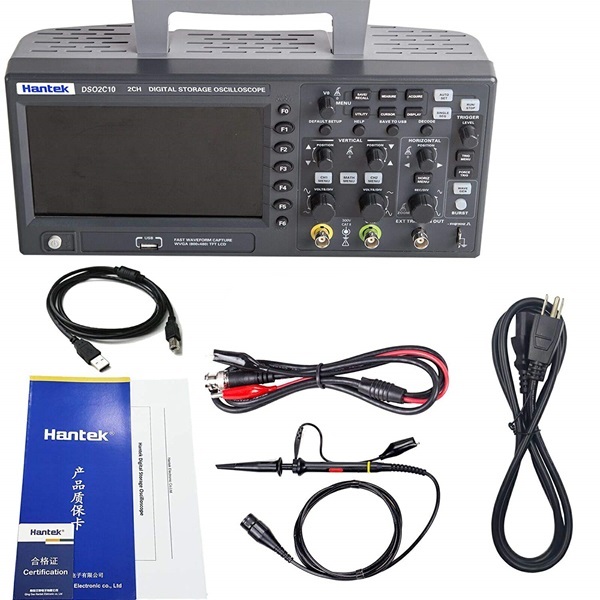

Model   DSO2C10

Bandwidth 100MHz

Oscilloscope channels 2CH

Oscilloscope

Sample rate      1GSa/s (single channel) 500MSa/s (two channels)

Acquisition

Normal Sample data

Peak-to-peak value       Display high frequency and random burr

Average               Average waveform, times:  4, 8, 16, 32, 64, 128

High resolution                Up to 12bit

Input

Input coupling  DC, AC, GND

Input impedance            1MΩ±2% ‖20pF±3pF.

Probe attenuation factor            1X, 10X, 100X, 1000X

Voltage rating   300V CAT II

Maximum input voltage              300VRMS (10X)

Horizontal

Waveform interpolation              (sin x)/x

Maximum record length              Single channel maximum 8M

Two channels maximum 4M

Horizontal scale range 2ns/div~100s/div 1, 2, 5 step by step

Time base mode             Y-T, X-Y, Roll

Zero offset         ±0.5 div×minimum time base gear

Sample Rate and Delay Time Accuracy              ±25ppm

Sample Rate and Delay Time Accuracy              ±50ppm（at any interval greater than 1ms）

Vertical

Rising time in BNC position (typical)  3.5ns

Vertical resolution         8 bits resolution, each channel samples simultaneously

Vertical sensitivity         2mV/div to 10V/div

Offset range      ≥ 200mV/div, ±1V;

                         ＜200mV/div ±50V

Mathematical operation             +, -, ×, ÷, FFT

FFT        Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop

Bandwidth Limit             20MHz

Bass response（-3db）             In BNC position ≤ 10Hz

Vertical gain accuracy In ''normal'‘ or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%

                                    In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4%

Warranty: 1 Year
