Type of Product: Vernier Calipers With Fine Adjustment
Range: 0-130mm/0-5 Inch
Accuracy: +-0.03mm
Graduation: 0.02mm/0.001 Inch

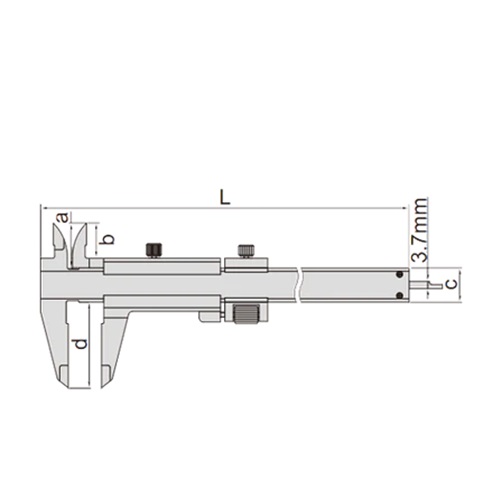

L: 230mm
a: 20.5mm
b: 16.5mm
c: 16mm
d: 40mm
Material: stainless steel
Warranty:
As Per Insize Policies
Graduation: 0.02mm/0.001 Inch
With fine adjustment
Meet DIN862
Made of stainless steel
Satin chrome plated reading surface
The vernier calipers found in the laboratory incorporates a main scale and a sliding vernier scale which allows readings to the nearest 0.02 mm. This instrument may be used to measure outer dimensions of objects (using the main jaws), inside dimensions (using the smaller jaws at the top), and depths (using the stem).
