- Laser diode Line: 630 - 650 nm, < 10mW
- Operating temperature -10 – 40 °C
- Storage temperature -20 – 70 °C
- Laser class 2
- Working range 30 m
- Working range with receiver 120 m (Diameter)
- Working range without receiver 30 m (Radius)
- Accuracy ± 0.2 mm/m
- Self-levelling range ± 4°
- Levelling time 4 s
- Dust and splash protection IP 54
- Power supply 4 x 1.5 V LR6 (AA)
- Operating time (max.) 4 h in 3-line mode
- Tripod thread 1/4", 5/8"
- Weight, approx. 0.82 kg
- Colour of laser line red
- Projection 3 x 360° line
- Compatible laser receivers LR 6 + 7
Warranty:
Brand Warranty
- Includes: 4 x 1.5 V LR6 battery (AA). Carrying case, Laser target plate, Pouch
- High visual clarity is provided by high-powered diodes
- 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
- Intuitive user interface offers easy operation
- Self-levelling (4° in 4 sec) and very precise (± 0.2 mm/m)
- Working range of 120 m with the LR 6 or LR 7 Professional receiver (optional)
- Compact, easy to handle and extremely robust (IP54)
- Pendulum lock ensures safe transport
This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles.

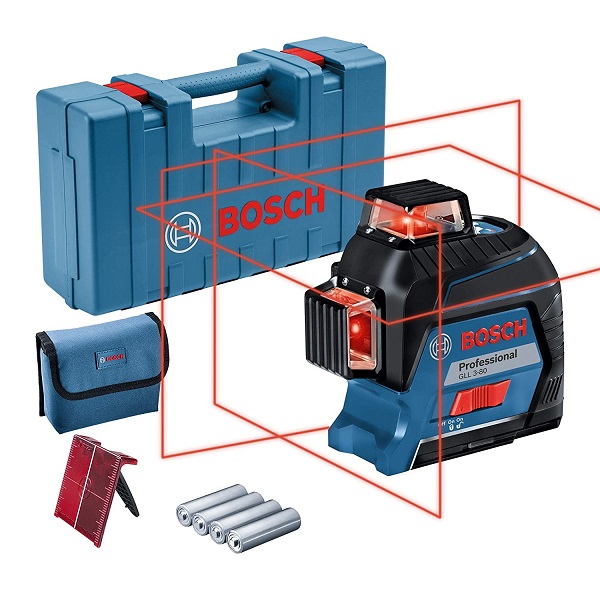

The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation.
