- AC current Range 40.00 A / 400.0
- Accuracy 1.5% ± 5 digits (45 Hz to 400 Hz)
- Note: Add 2% for position sensitivity
- AC voltage Range 600.0 V
- Accuracy 1.5% ± 5 digits
- DC voltage Range 600.0 V
- Accuracy 1.0% ± 5 digits
- Resistance Range 400.0 Ω/ 4000 Ω
- Accuracy 1.0% ± 5 digits
- Continuity ≤ 30 Ω
- Capacitance 0 to 100.0 μF / 100μF to 1000 μF
- AC response True-RMS
- Backlight Yes
- Data hold Yes
- Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F)
- Size H x W x D (mm) 207 x 75 x 34
- Max wire diameter 30 mm (600 MCM)
- Weight 208 g
- Category rating CAT III 600 V, CAT IV 300 V
Warranty:
2 Years

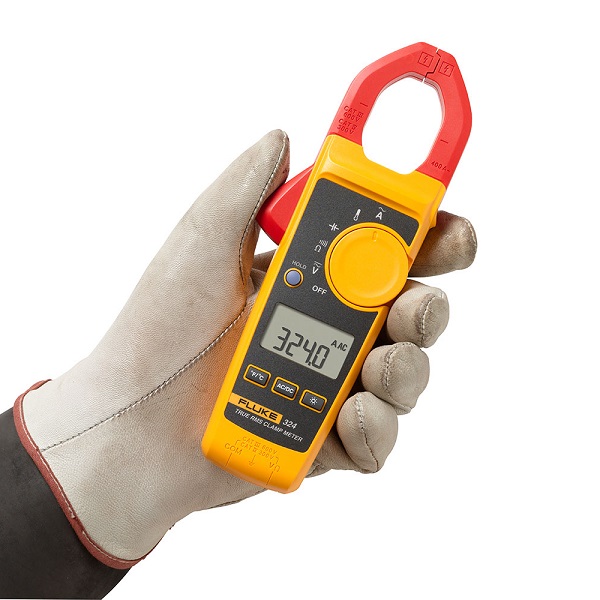

Fluke 324 Clamp Meter combines volts, amps, capacitance and temperature in a handy compact package
True RMS measurements, optimized ergonomics, and a backlight display make the Fluke 324 Clamp Meter a great general purpose troubleshooting tool for commercial and residential electricians. Designed to perform in the toughest environments and provide noise-free, reliable results, you can trust the 324 to help you confidently diagnose problems. Use it to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts and to measure temperature and capacitance. Its slim, compact size and rugged design make it well suited for measuring current up to 400 A in tight cable compartments.
Industrial grade True-Tms Clamp Meter
