UNI-T Authorized brand

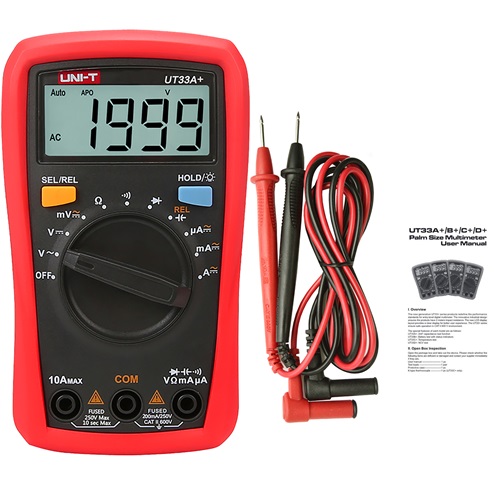

UNI-T UT33A+ Palm Size Multimeter

SKU: UT33A
Rs. 1,499.00 MRP Rs. 1,650.00 Save Rs. 151.00 (10% off) Inclusive of GST-18%
In Stock (34 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The new generation UT33+ series redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.

  • Clear LCD display
  • Equipped with comfortable protective cover, test lead hanging slot
  • 2m drop proof with precision protection
  • Auto power off
  • Auto backlight off
  • Loud buzzer
  • Ergonomically designed rotary switch
  • AutoRanging

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report



Product information

Everything you need to know

Technical Specifications

- DC voltage (V) 200.0mV～600V ±(0.5%＋3)
- AC voltage (V) 200.0mV～600V ±(0.7%+3)
- DC current (A) 200.0μA～10.00A ±(1.0%+3)
- AC current (A) 200.0μA～10.00A ±(1.2%+3)
- Resistance (Ω) 200.0Ω～200.0MΩ ±(1.0％+2)
- Capacitance (F) 2.000nF～2.000mF ±(3%+5)
- Max display 　 1999
- Auto power off 　 √
- Auto backlight off 　 √
- Diode test 　 √
- Continuity buzzer 　 √
- Drop test 　 2m
- Test probe holder 　 √
- Safety rating 　 CAT Ⅱ 600V
- Range selection 　 Auto
- Power AAA battery (zn-mn) 1.5V×2

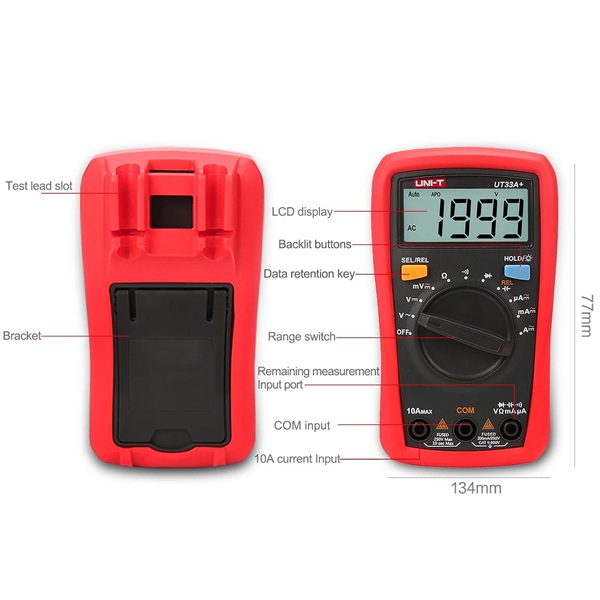

- LCD size 66mm*51mm
- Product color Red and grey
- Product net weight 473g
- Product size 131mm×95mm×58mm
- Standard accessories Test lead, manual

Warranty
Brand Warranty

Recommended Uses

General Purpose Multimeter
