- Typical measuring tolerance 1 ±1.0 mm 3
- Maximum measuring tolerance 2 ±2.0 mm 3
- Range At Leica Target Plate GZM26 100 m / 330 ft
- Typical range 1 80 m / 260 ft
- Range at unfavorable condition 4 60 m / 195 ft
- Smallest unit displayed 6 / 30 / 60 mm (10 / 50 / 100 m)
- Ø Laser point at distances 6 / 30 / 60 mm (10 / 50 / 100 m)
- Measuring tolerance to laser beam 5 ±0.2°
- Measuring tolerance to housing 5 ±0.2°
- Range 360°
- Laser class 2
- Laser type 635 nm, < 1 mW
- Protection class IP54
- Automatic laser off After 90 seconds
- Automatic power off After 180 seconds
- Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 5,000 measurements
- Size (L x W x D) 127 x 56 x 33 mm
- Weight (with batteries) 158 g
- Calibration cycle Tilt and compass
- Maximum altitude 3000 m
- Maximum relative humidity 85% at 20°F to 120°F (-7°C to 50°C)
Warranty:
As per Flukes Warranty Policy

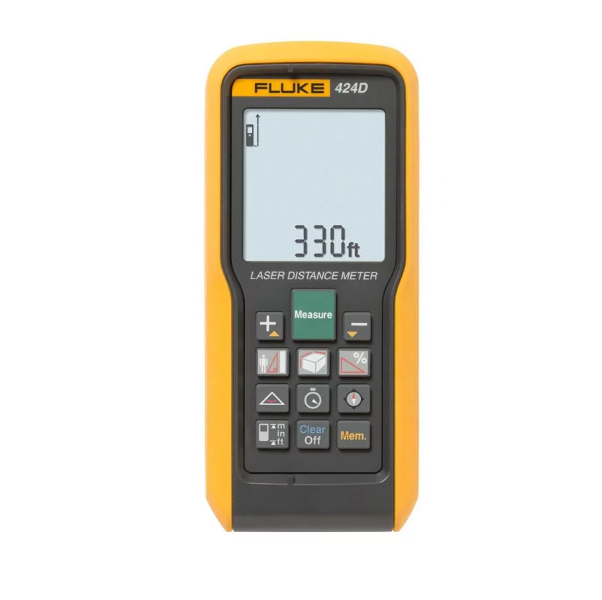

The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations and reduce errors. Just point and click to instantly measure up to 100 meters (330 ft.), accurate to + 1 mm. No scales to interpret or misread. The extra bright laser supports easy targeting even at longer distances. Extra features like a 180º inclination sensor, the corner angle feature, and a built-in compass make it easy to get accurate measurements in hard-to-reach locations. You'll be able to see the results more clearly on the large, four-line backlit display. No matter your job, the 424D laser distance meter will help you do the work of two people on your own.
Industrial Grade Distance Meter
