Mastech

Mastech MS8229 Auto-Range 5-in-1 Multi-Functional Multimeter

SKU: MS8229
Rs. 6,715.00 MRP Rs. 7,799.00 Save Rs. 1,084.00 (14% off) Inclusive of GST-18%
Out of stock Dispatch lead time: 1 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

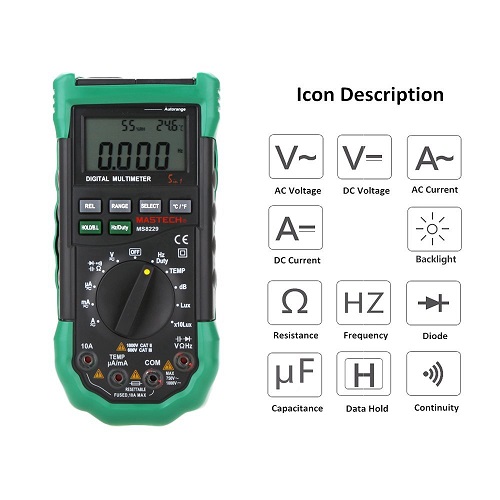

MS8229 is an improved and modified version of the widely praised Mastech MS8209, it combines a multimeter, a sound level meter, thermometer, lux meter, humidity meter all in one. Also it is packed with manMy nice features such as temperature & humidity display, sound and light warning for the jacks and back-lit LCD Screen. Built-in Temperature & Humidity Sensors show you the environmental temperature and humidity.

  • Display 4000 Counts
  • Auto & Manual Ranging
  • Auto Power Off
  • ℃/℉ Selection
  • Diode Open Voltage 1.5V
  • Continuity Buzzer <50±20Ω
  • Data Hold
  • Low Battery Display
  • Display Backlight
  • Digital Multimeter + Lux Meter + Humidity Meter + Sound Level Meter + Thermometer
  • Built-in temperature & humidity sensors show you the environmental temperature and humidity.
Product information

Everything you need to know

Technical Specifications

- DCV: 400m/4/40/400/1000V ± 0.7%+2
- ACV: 400m/4/40/400V ±0.8%+3; 750V ±1%+3
- DCA: 400μ/4000u/40m/400m ±1.2%+3 4/10A ±2.0%+10
- ACA: 400μ/4000u/40m/400m ±1.5 %+5 4/10A ± 3.0%+10
- Resistance: 400/4K/40K/400K/4M ±1.2%+5 ; 40M ±2%+5
- Capacitance: 40n/400n/4u/40u/100uF ±3.0%+3
- Frequency: 10/100/1K/10K/100KHz ± 2.0%+5
- Temperature: -20 ~1000 ℃ ±2.0% ; ﹣4℉~1832℉ ±2.0%
- RH: 20 to 95% ± 5.0%,
- Lux: 4,000/40,000 Lux ±5.0%
- Sound dB: 40~100dB ±3.5%
- Diode test, Continuity tester: Buzzer if resistance is less than 40 ohms.
- Duty cycle: 0.1%-99.9% ± 3.0%.
- Display: LCD, 3 readings at the same time
- Maximum value display: 3999 digits
- Polarity indication: automatic;"-" for negative polarity.
- Auto power off time: 30 min
- Operating power: 1.5V x 3 AAA batteries

Warranty
As per Mastech's policy.

Application

A digital multimeter (DMM) is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
