UNI-T Authorized brand

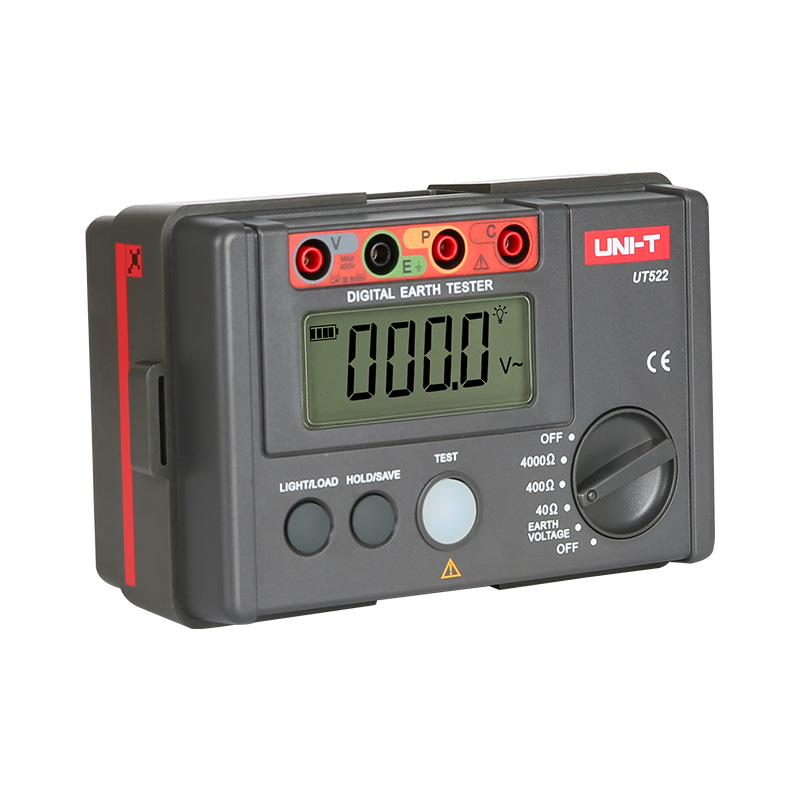

UNI-T UT522 Earth Resistance Tester

SKU: UT522
Rs. 16,850.00 MRP Rs. 18,975.00 Save Rs. 2,125.00 (12% off) Inclusive of GST-18%
In Stock (9 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment.

Earth Resistance (Ω)

  • 0～40Ω, ±(2%+20)
  • 0～400Ω, ±(2%+3)
  • 0～4000Ω, ±(2%+3)

 Features

  1. Over range indication, test lead connection alarm
  2. EST button for fast capture of measurement values
  3. 20-group data storage/recall
  4. Backlight
  5. Data hold
  6. Auto power off/battery check
  7. Earth voltage measurement

Includes High Quality- Original UNI-T Earth Testing Kit

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Product information

Everything you need to know

Technical Specifications



  • Earth Resistance (Ω)
    • 0～40Ω, ±(2%+20)
    • 0～400Ω, ±(2%+3)
    • 0～4000Ω, ±(2%+3)
  • AC Earth Voltage (V): 0～400V, ±(1%+6)
  • Frequency: 50Hz/60Hz
  • Display Count: 4000
  • Manual Range
  • Auto Power Off: About 10 minutes
  • Low Battery Indication
  • Data Hold
  • Data Storage: 20 groups
  • LCD Backlight
  • Full Icon Display
  • Double Insulation Protection
  • Contact Badness Indication
  • Over-Range Display
  • Simple 2-Wire Testing
  • Precision 3-Wire Testing
  • Power: 1.5V batteries (5#) X 6
  • LCD Size: 70.6mm X 34mm
  • Weight: 560g
  • Product Size: 160mm X 100mm X 70.5mm
  • Standard Accessories: Batteries, carrying bag, test lead, simple test lead, test probe
Warranty
1 Year

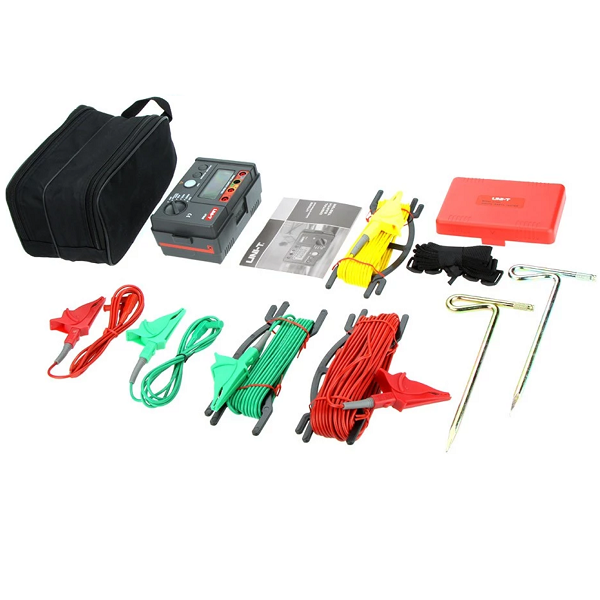

What's in the Box

Accessories Batteries, simple test leads with alligator clips, standard test leads with alligator clips, earth spike, gallus

Application

UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment. This series is UNI-T’s introductory earth resistance tester with high economic value. Its lightweight design is convenient for fieldwork.
