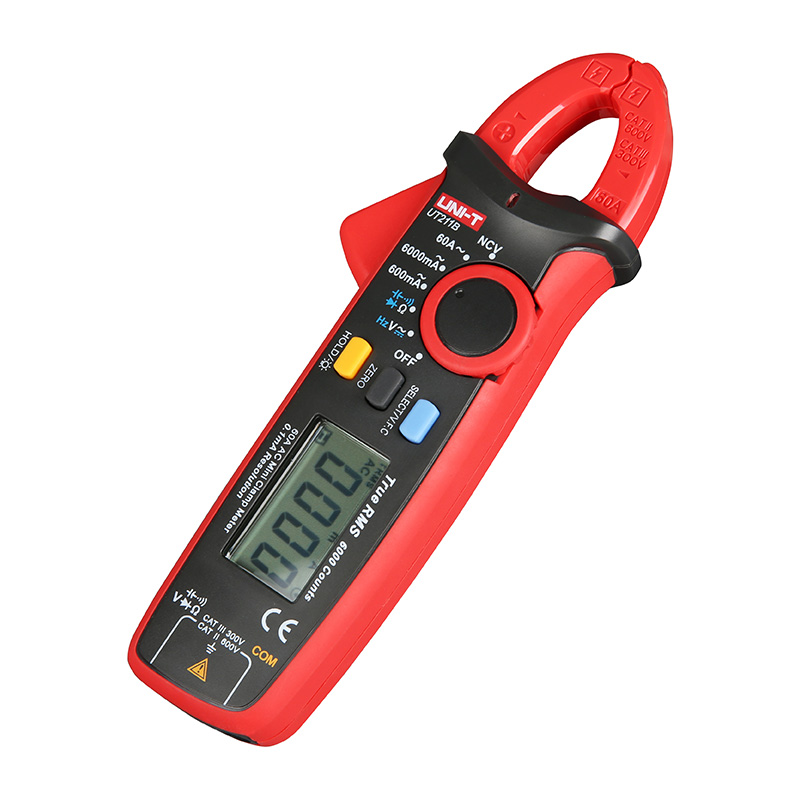

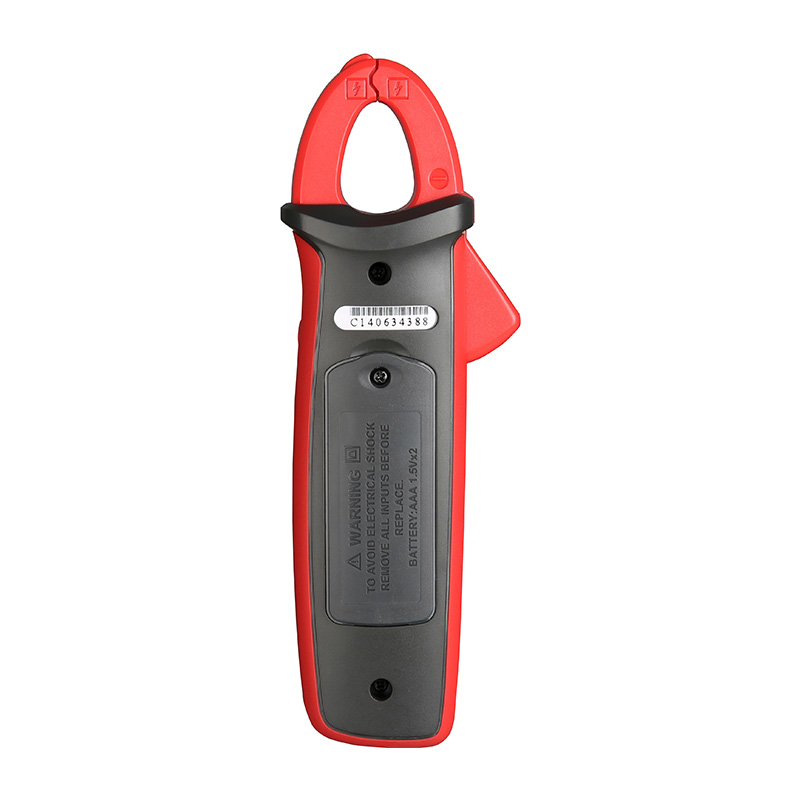

UNI-T UT211B mini 60A AC/DC True RMS Clamp Meter

SKU: UT211B
Rs. 11,000.00 MRP Rs. 14,740.00 Save Rs. 3,740.00 (26% off) Inclusive of GST-18%
In Stock (39 available) Dispatch lead time: 1 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

UNI-T's UT211B is a mini 60A True RMS high-precision digital clamp meter with auto range and zero mode.

It can troubleshoot small current circuit (mA).

  • Max AC current resolution: 0.1mA
  • Max DC current resolution: 1mA
  • Data hold, LCD backlight
  • True RMS
  • 17mm jaw
  • Standard Accessories Batteries, Test Lead


ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report



Product information

Everything you need to know

Technical Specifications

- AC Current (A) 600mA/6000mA/60A ±(1.5%+10)

- DC Current (A) 6000mA/60A ±(2%+3)

- AC Voltage (V) 6V/60V/600V ±(0.8%+3)

- DC Voltage (V) 600mV/6V/60V/600V ±(0.7%+3)

- Resistance (Ω) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+2)

- Capacitance (F) 6.2nF~62mF ±(4%+5)

- Max AC current resolution: 0.1mA

- Max DC current resolution: 1mA

- AC current accuracy: ±(1.5%+10)

- Auto range, 6000 display count

- VFC low pass filter

- Auto power off, low battery indication

- True RMS

- Diode Around 3.0V.

- NCV

- Data Hold

- Zero Mode

- LCD Backlight

- Auto Power Off Around 15 minutes

- Continuity Buzzer 　

- Low Battery Indication ≤2.5V

- Input Protection

- Input Impedance for DCV ≥10MΩ

- Power AAA 1.5V x 2

- LCD Size 39.3mm x 26.5mm

- Product Net Weight 170g

Warranty
1 Year

Product Description





What's in the Box

Includes Batteries, test leads

Application

It can troubleshoot small current circuit (mA).
V.F.C (variable frequency control) mode for maintenance and diagnostic of air-conditioners that is variable frequency driven.
