UNI-T Authorized brand

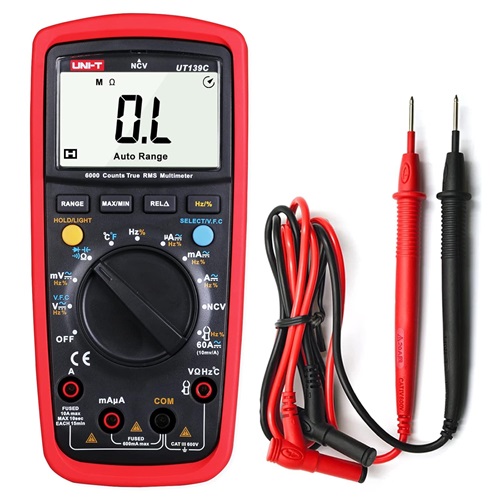

UNI-T UT139C True Rms Digital Multimeter

SKU: UT139C
Rs. 5,199.00 MRP Rs. 7,150.00 Save Rs. 1,951.00 (28% off) Inclusive of GST-18%
In Stock (2 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity

  • Display Count: 6000
  • Auto Range: Yes
  • TRUE RMS: Yes
  • Bandwidth: 45Hz ~ 1kHz
  • Variable Frequency Device (VFD): Yes
  • Duty Cycle: 0.1% - 99.9%
  • Diode: around 3V
  • NCV: ≥ 100V rms
  • Auto Power Off: Around 15 Minutes
  • Continuity Buzzer: Yes
  • LCD Backlight: Yes
  • CAT-III (to 600V) safety rating
  • Includes Battery, Test Lead, and Temperature probe

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Product information

Everything you need to know

Technical Specifications

- DC Voltage: 600mV / 6V / 60V / 600V, Accuracy: ±(0.5%+2)
- AC Voltage: 6V / 60V / 600V, Accuracy: ±(0.8%+3)
- DC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A, Accuracy: ±(0.8%+2)
- AC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A, Accuracy: ±(1%+3)
- Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ, Accuracy: ±(0.8%+2)
- Capacitance: 9.999nF / 99.99nF / 999.9nF / 9.999µF / 99.99µF / 999.9µF / 9.999mF / 99.99mF, Accuracy: ±(4%+5)
- Frequency: 10Hz ~ 10MHz, Accuracy: ±(0.1%+4)
- Temperature: -40°C ~ 1000°F, Accuracy: ±(1%+3)
- Temperature: -40°F ~ 1832°F, Accuracy: ±(1.5%+5)
- Input Protection: 600V rms
- Input Impedance for DCV: 1 GΩ max.
- Power: 2x 1.5V AA
- LCD Size: 58mm x 36mm
- Product Net Weight: 370 g
- Product Size: 180mm x 87mm x 47mm

Warranty
1 Year

Recommended Uses

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance.
