- Bandwidth 50Mhz
- Y Deflection 2mV/div ~ 50V/div
- Max Input 400V (DC + ACPEAK) frequency ≤ 400Hz (when impedance is 1 MΩ)
- Sweep Mode Time Base
- Trigger Level Range Internal Trigger: ±4 div
- External Trigger: ±1.6 div
Warranty:
As Per HTC Instruments Policy

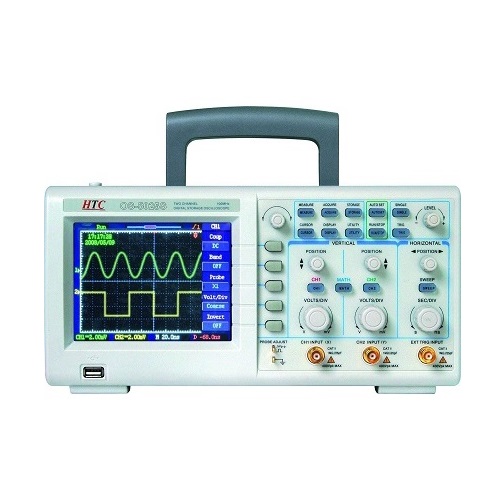

- Vertical two channel, bandwidth of each channel is 50Mhz
- Real-time Max Sampling rate is 500MSa/s.
- Support communication interface RS232, USB(main sub), RJ45 LAN
- Input attenuation 2mV/div ~ 50V/div, Easy to measure big signal
- 5.7 inch color display screen.
- Standard Accessories : Passive probe, Power Cable, Instruction Manual, Driver CD
- Dimension :300(H) x 150(W) x 130(D)mm
Oscilloscopes are used to observe the change of an electrical signal over time, such that voltage and time describe a shape which is continuously graphed against a calibrated scale. The observed waveform can be analyzed for such properties as amplitude, frequency, rise time, time interval, distortion and others.
