HTC Instruments

HTC Instruments CM-2070FT 1000A AC Clamp Meter with Temp. & Frequency

SKU: HTC-B5
Rs. 1,840.00 MRP Rs. 2,100.00 Save Rs. 260.00 (13% off) Inclusive of GST-18%
In Stock (5 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

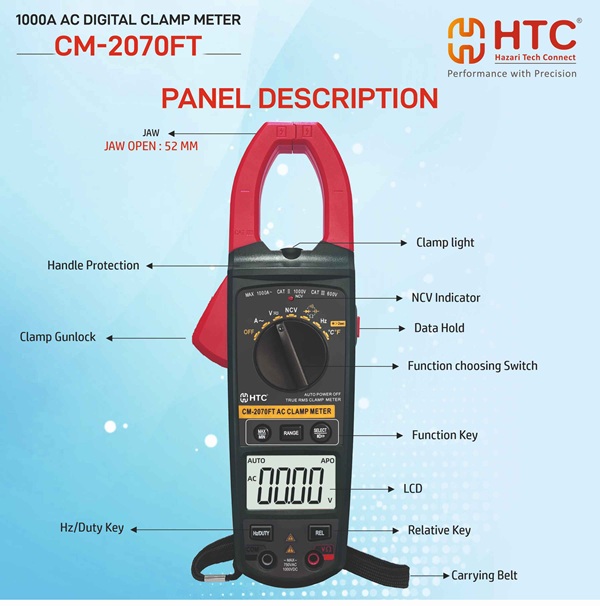

  • HTC Brand: CM-2070FT 1000A AC Clamp Meter with Temp. & Frequency
  • Model: HTC-B5
  • 3 1/2 Auto range Clamp Meter.
  • Full Function Protection, Strong anti-interferential Performance.
  • Clamp Open: 52mm.
  • Temperature & Non Contact Voltage (NCV)
  • Frequency Test
  • Warranty: 6 Months


Standard Accessories : Test leads, Battery, Manual, TP01 Temperature probe

Product information

Everything you need to know

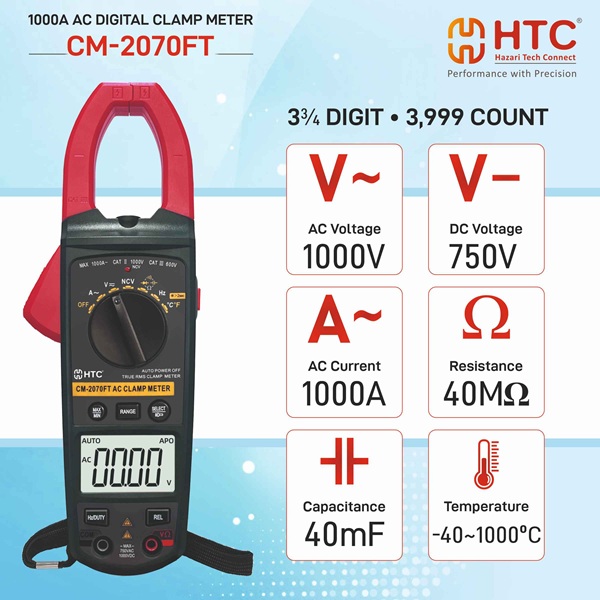

Technical Specifications

- DC VOLTAGE (DCV) 200 mV ~ 1000 V
- AC VOLTAGE (ACV) 200 mV ~ 750 V
- AC Current (ACA) 200A 1000A
- Resistance (Ω) 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ / 20MΩ
- Temperature (-40 ~ 1000) °C (0 ~ 1832) °F
- Frequency (For CM-2070FT) 100 Hz ~ 10 MHz
- Dimensions : 123(H) x270(W) x 35(D)mm

Warranty
1 year

Recommended Uses

Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
