HTC Instruments

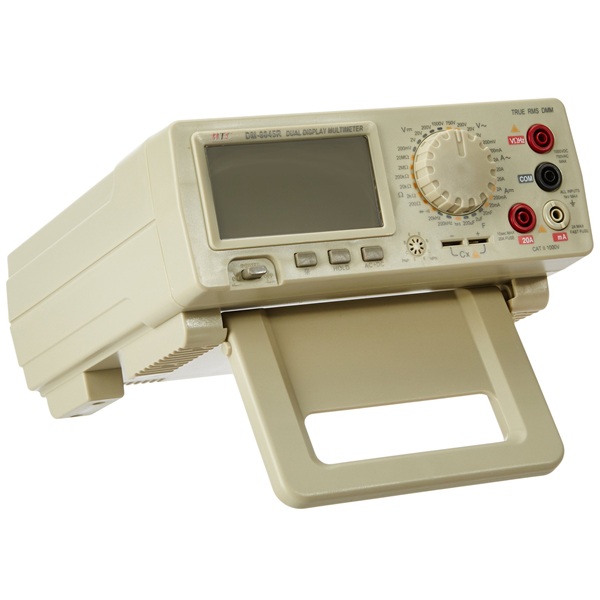

HTC Instruments DM-8045R Bench Type Digital Multimeter

SKU: HTC-A13
Rs. 7,160.00 MRP Rs. 8,870.00 Save Rs. 1,710.00 (20% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • HTC Brand: DM-8045R Bench Type Digital Multimeter
  • Model: HTC-A13
  • 4½ Digital Large LCD Display, 20,000 Counts
  • Auto Power OFF
  • Data Hold
  • Backlight
  • True RMS
  • Warranty: 6 Months
  • Standard Accessories : Test Leads, Power Cord , Manual
Product information

Everything you need to know

Technical Specifications

- Continuity Buzzer Approx. < 30 +10
- Input Impedance 10M
- Low Battery Display Approx. < 7.5V
- Sampling Rate 3 times per second
- Auto Power OFF Approx. 30 min.
- AC Frequency Response 40-400Hz
- DCV 200mV/2V/20V/200V/1000V ±(0.05% + 3)
- ACV 200mV/2V/20V/200V/750V ±(0.8% + 80)
- DCA 20mA/200mA/2A/20A ±(0.35% +10)
- ACA 200mA/2A/20A ±(0.8% + 80)
- Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(0.1% + 5)
- Frequency 20kHz/200kHz ±(1.0% +20)
- Capacitance 20nF/2uF/200uF ±(3.5% + 20)

Warranty
1 year

Recommended Uses

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance
