HTC Instruments

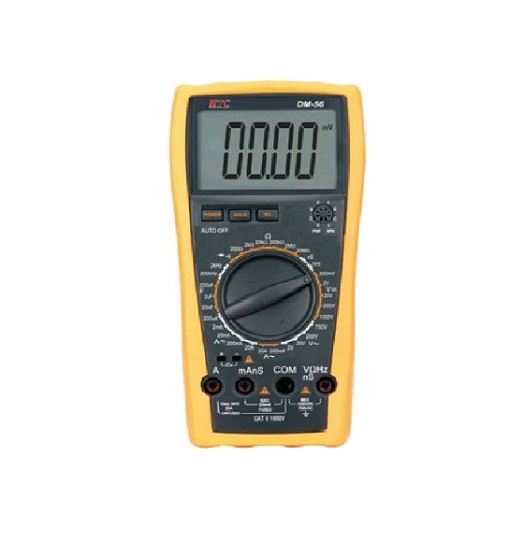

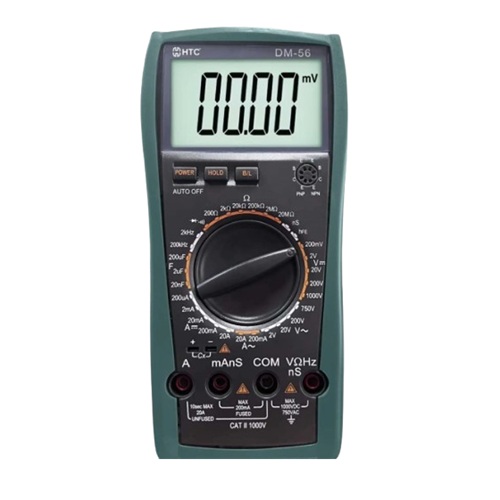

HTC Instruments DM-56 Digital Multimeter with Conductance

SKU: HTC-A11
Rs. 2,810.00 MRP Rs. 3,800.00 Save Rs. 990.00 (27% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • HTC Brand: DM-56 Digital Multimeter with Conductance
  • Model: HTC-A11
  • Warranty: 6 Months

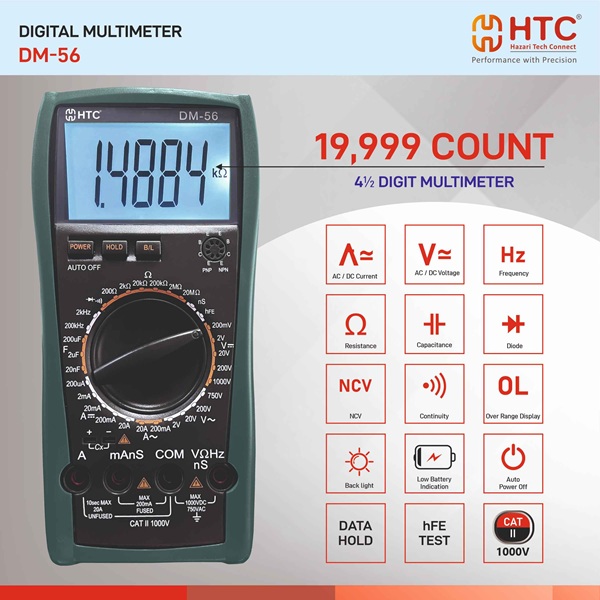

  • 4½ Digital Multimeter
  • 20,000 Counts
  • Large LCD Display with Manual Range
  • No Power-OFF under natural operation
  • Data Hold, Max
  • Conductance, Capacitance, Frequency
  • Backlight

 Accessories Test Leads, Manual & Battery

Product information

Everything you need to know

Technical Specifications

- DC Voltage: 10mV ~ 1000V, ±(0.05% + 3digit)
- AC Voltage: 10mV ~ 750V, ±(0.8% + 25digit)
- DC Current: 0.01mA ~ 20A, ±(0.5% + 4digit)
- AC Current: 10mA ~ 20A, ±(1.5% + 25digit)

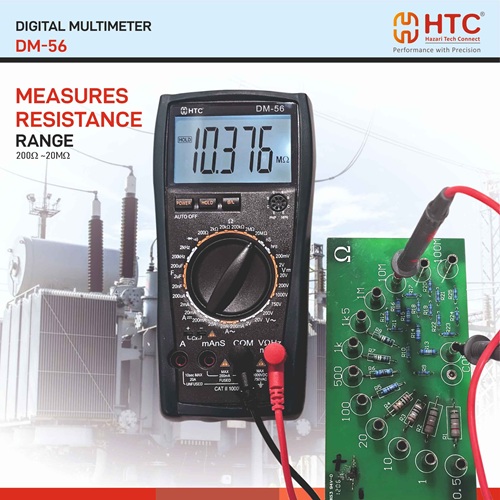

- Resistance: 0.01Ω ~ 200MΩ, ±(0.2% + 5digit)
- Conductance: (0.1~100)nS, ±(1.0% + 3digit)
- Capacitance: 0.1pF ~ 200uF, ±(3.5% + 10digit)
- Frequency: 200kHz, ±(3.0% + 15digit)
- hFE (NPN or PNP), 0 ~ 1000
- Basic current is approx. 10mA,, Vce is approx 3.0V

Warranty
1 year

Product Description

- Standard Accessories : Test Leads, Holster, Manual
- Dimension : 185(H) x 93(W) x 35(D)mm

Recommended Uses

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance
