HTC Instruments

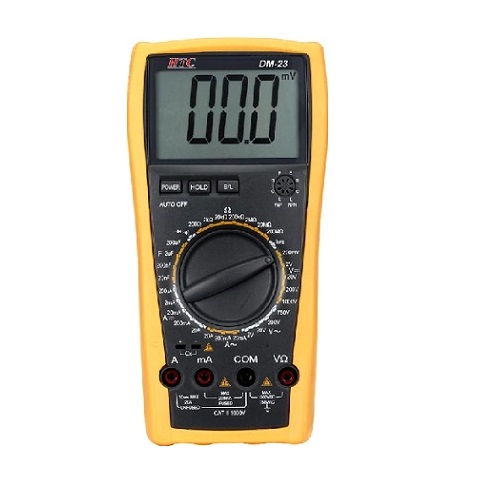

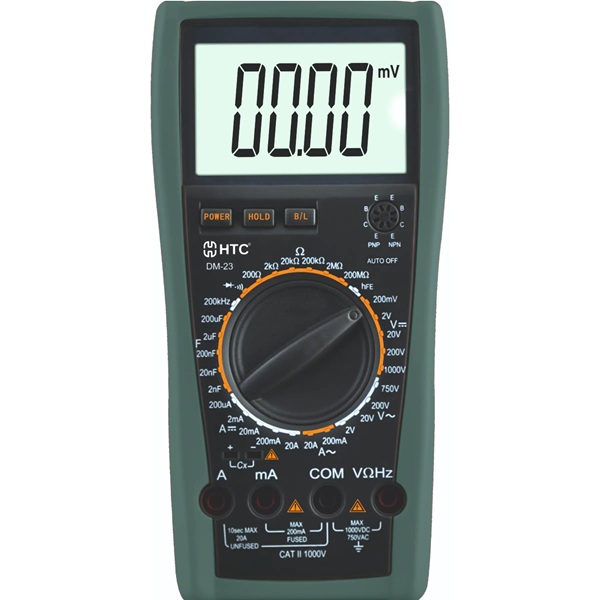

HTC Instruments DM-23 Digital Multimeter

SKU: HTC-A10
Rs. 3,090.00 MRP Rs. 4,000.00 Save Rs. 910.00 (23% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.



  • HTC Brand: DM-23 4 1/2 Digital Multimeter
  • Model: HTC-A10
  • Warranty: 6 Months

 Accessories : Test Leads, User Manual & Battery.

Product information

Everything you need to know

Technical Specifications

- DC Voltage: 10mV ~ 1000V, ±(0.05% + 3digit)
- AC Voltage: 10mV ~ 750V, ±(0.8% + 25digit)
- DC Current: 0.01mA ~ 20A, ±(0.5% + 4digit)
- AC Current: 10mA ~ 20A, ±(1.5% + 25digit)
- Resistance: 0.01Ω ~ 200MΩ, ±(0.2% + 5digit)
- Capacitance: 0.1pF ~ 200uF, ±(3.5% + 10digit)
- Frequency: 200kHz, ±(3.0% + 15digit)
- hFE (NPN or PNP): 0 ~ 1000
- Basic current is approx. 10mA,
- Vce is approx 3.0V
- Dimensions: 185(H) x 93(W) x 35(D)mm

Warranty
1 year

Product Description

Standard Accessories : Test Leads, Holster, Manual
- 4½ Digital Multimeter
- 20,000 Counts, Large LCD Display with Manual Range
- No Power-OFF under natural operation
- Data Hold, Max
- Conductance, Capacitance, Frequency
- Backlight

Recommended Uses

Used by electricians and technicians for general testing and measuring purpose
