HTC Instruments

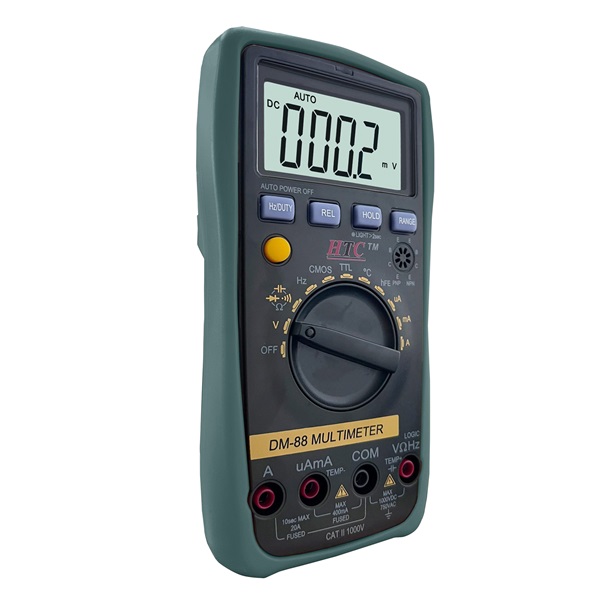

HTC Instruments DM-88 Logic Digital Multimeter

SKU: HTC-A6
Rs. 1,955.00 MRP Rs. 2,620.00 Save Rs. 665.00 (26% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • - HTC Brand: DM-88 Logic Digital Multimeter
  • - Model: HTC-A6
  • - 3 ½ Digital Multimeter
  • - COMS, TTL Logic Test
  • - Large LCD display makes reading clear
  • - No Power-OFF under natural operation
  • - Capacitance, Frequency / Duty Cycle,Temperature and Transistor Test
  • - Warranty: 6 Months

Accessories : Test leads, Manual, TP04 Temperature Probe & Battery.

Product information

Everything you need to know

Technical Specifications

- DC Voltage: 0.1mV ~ 1000V, ±(0.5% + 4digit)
- AC Voltage: 0.1mV ~ 750V, ±(0.8%+ 6digit)
- DC Current: 0.1uA ~ 10A, ±(1.0% + 5digit)
- AC Current: 0.1uA ~ 10A, ±(1.5% + 5digit)
- Resistance: 0.1Ω ~ 40MΩ, ±(0.8% + 1digit)
- Capacitance: 10pF ~ 200uF, ±(3.5% + 8digit)
- Frequency: 0.1Hz ~ 30MHz, ±(0.5% + 4digit)
- Temperature: -40°C～1000°C, ±(0.8% + 4digit)
- Dimensions : 170(H) x 86(W) x 35(D)mm

Warranty
1 year

Product Description

- Data Hold, Max. / Min. Value Hold
- Capacitance, Frequency / Duty Cycle,Temperature and Transistor Test
- Standard Accessories : Test Leads, Battery, Manual, TP 01 Temperature Probe

Recommended Uses

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings.
