HTC Instruments

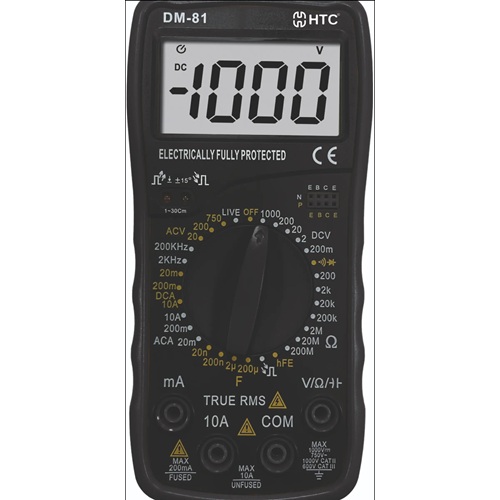

HTC Instruments DM-81 Digital Multimeter

SKU: HTC-A3
Rs. 805.00 MRP Rs. 1,100.00 Save Rs. 295.00 (27% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • HTC Brand: DM-81 Digital Multimeter
  • Model: HTC-A3
  • 3 ½ Digital Multimeter with Manual Range

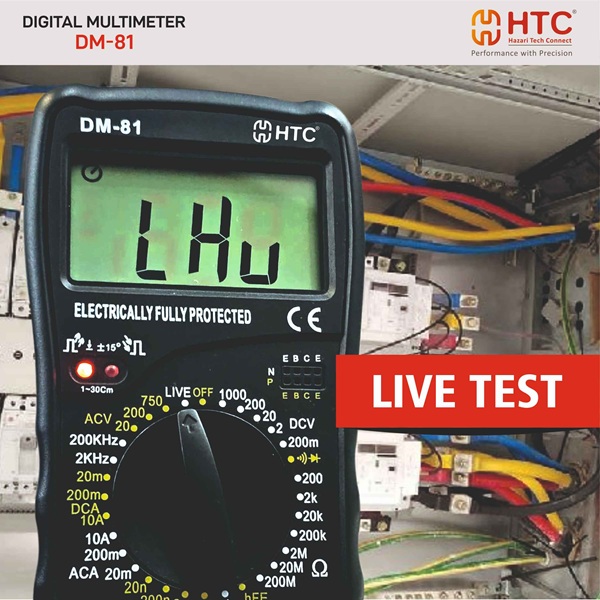

  • Live Wire Recognition
  • Live Remote Control Testing
  • Full Overload Protection
  • Warranty: 6 Months


Accessories
Test leads, User Manual & Battery.

Product information

Everything you need to know

Technical Specifications

DV Voltage
- 200mV 0.1mV ±1.2% of rdg + 5 digits
- 2V 1mV ±1.2% of rdg + 5 digits
- 20V 10mV ±1.2% of rdg + 5 digits
- 200V 100mV ±1.2% of rdg + 5 digits
- 1000V 1V ±1.5% of rdg + 5 digits
DV Current
- 2mA 1µA ±1.5% of rdg + 5 digits
- 200mA 10µA ±2% of rdg + 5 digits
- 20A 10mA ±3% of rdg + 5 digits
AC Voltage
- 200mV 0.1mV ±2% of rdg + 5 digits
- 2V 1mV ±1.8 of rdg + 5 digits
- 20V 10mV ±1.5 of rdg + 5 digits
- 200V 1000mV ±1.5 of rdg + 5 digits
- 750V 1V ±2% of rdg + 7 digits
AC Current
- 2mA 1µA ±2% of rdg + 5digits
- 200mA 100µA ±2.5% of rdg+ 5digits
- 20A 10mA ±3% of rdg+ 7digits

Warranty
1 year

Product Description

Standard Accessories : Test Leads, Manual

Recommended Uses

A multimeter or a multitester, also known as a VOM (volt-ohm-milliammeter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance
