HTC Instruments

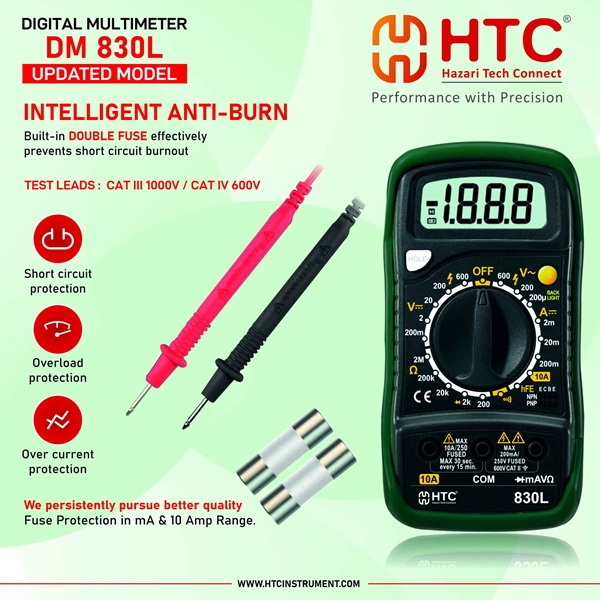

HTC Instruments DM-830L Digital Multimeter

SKU: HTC-A2
Rs. 620.00 MRP Rs. 850.00 Save Rs. 230.00 (28% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

- HTC Brand: DM-830L Digital Multimeter
- Model: HTC-A2
- Warranty: 6 Months

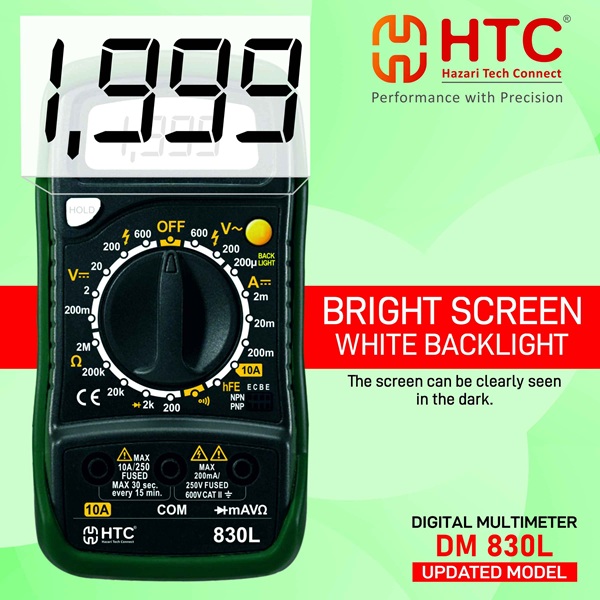

- 3 ½ Digit LCD Display with backighting
- Data Hold
- Transistor & Diode Test
- Overload Protection
- Low Battery Indication

Accessories
Test leads, User Manual & Battery.

Product information

Everything you need to know

Technical Specifications

- DC Voltage: 200mV/2V/20V/200V/600V, ±(0.8% + 2 Digits)
- AC Voltage: 200 / 600V, ±(1.5% + 10 Digits)
- DC Current: 200µA/2mA/20mA/200mA/10A, ±(1.0% + 10 Digits)
- Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ, ±(0.8% + 2 Digits)
- Diode Check: 3V / 0.8mA
- hFE (NPN or PNP): 0 ~ 1000
- Dimension: 69(H) x 138(W) x 31(D)mm
- Weight: : Approx 170 gm

Warranty
1 year

Product Description

- Standard Accessories : Manual, Test leads, 9 Volt Battery, Holster

Recommended Uses

A digital multimeter (DMM) is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
