HTC Instruments

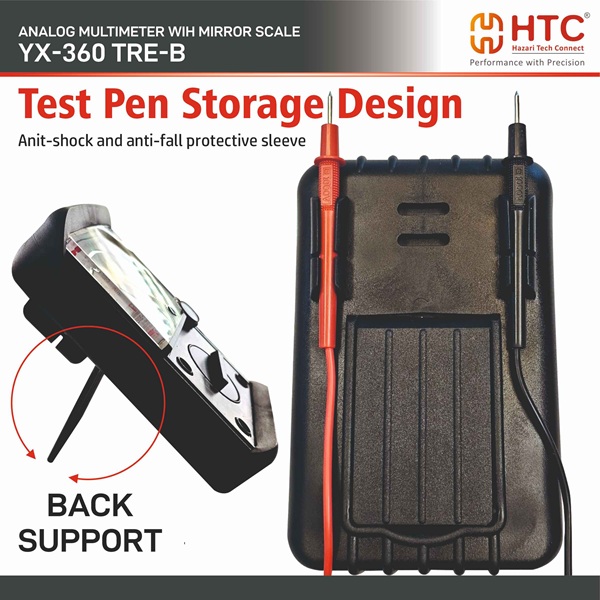

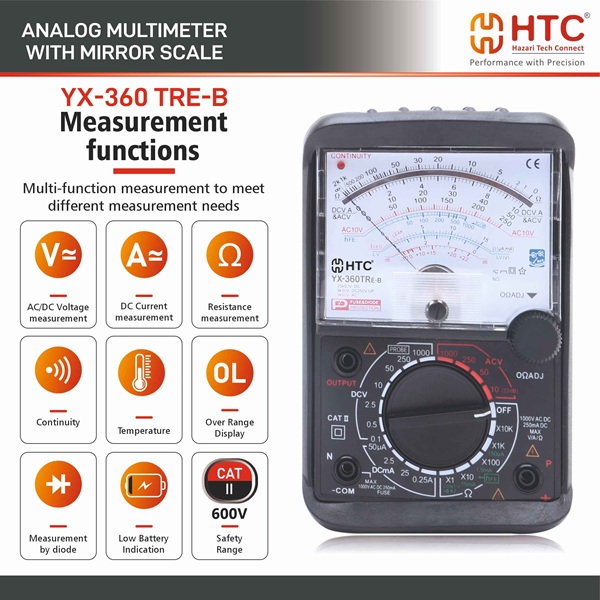

HTC Instruments YX- 360 TRE-B Analog Multimeter

SKU: HTC-A1
Rs. 780.00 MRP Rs. 1,000.00 Save Rs. 220.00 (22% off) Inclusive of GST-18%
In Stock (20 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • HTC Brand: 360 TREB Analog Multimeter
  • Model: HTC-A1
  • Analog Multimeter with Mirror Scale
  • Inbuilt Buzzer and LED
  • Transistor Test ,hFE with Diode
  • Standard Accessories : Test Leads, Holster, Manual
  • Dimension : 148(H) x 100(W) x 35(D)mm

Accessories :
Test leads, User Manual & Battery

Product information

Everything you need to know

Technical Specifications

- DC Voltage: 0.1mV~1000v, 3; for 1000V:5, 20kΩ/V
- AC Voltage: 10V~1000v, 4; for 1000V:5, 9kΩ/V
- DC Current: 50μA~10A, 3; for 10A:5,
- Resistance x 1, 0.2Ω~2kΩ,
x 10- 2Ω~ 20kΩ
x 100- 20Ω~200kΩ
x 1k- 200Ω~2MΩ
x 10k- 2kΩ~2Mhz
- Iceo: 150 μA-15mA-150mA
- hFE,: ~1000 with connector

Warranty
1 year

Recommended Uses

A digital multimeter (DMM) is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
