Maximum measurable voltage: 600V AC/DC
Resistance: 9.99 kilohms
AC bandwidth: 45Hz to 65Hz
Maximum working voltage: 1,000V
Power: (3) AAA batteries
Installation rating: CAT IV, 600V; CAT III, 1,000V
Standards met EN safety standard 61010-1, Canadian Standards Association,
Weight: 9.9 oz.
Dimensions: 1.3 x 2.15 x 7.6 inches (H x W x D)
Warranty:
As per Flukes warranty policy.

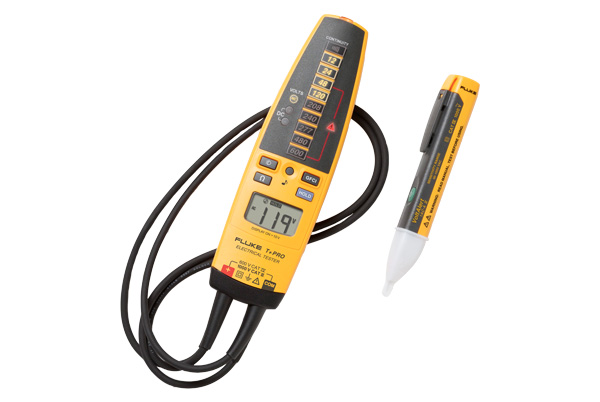

The T+Pro-1AC Electrical Tester and AC Voltage Detector Kit includes the Fluke T+Pro electrical tester for measuring AC and DC voltage to 600V and the Fluke 1AC-II voltage detector to test for energized circuits. The T+Pro electrical tester measures AC and DC voltage to 600V and resistance to 9.99 kilohms, and it indicates voltage via an LED light bar, sound, and vibration. An audible and visible continuity sensor confirms that a circuit conducts electricity. Its LCD screen displays test results, and backlighting helps eliminate light reflections and improves contrast in low-light conditions. A data hold function keeps a reading on the display for recording. It has a built-in flashlight for use in low light, and a GFCI (ground fault circuit interrupter) trip to verify functionality of GFCI circuits or components. It can detect the direction of a rotary field in a three-phase system when measured phase to phase. The unit operates on two AAA batteries, and it has a low-battery indicator that signals when the batteries need to be replaced. It meets International Electrotechnical Commission (IEC) safety standards 61010-1, and is rated for CAT IV installations to 600V, which covers measurements at the source of the low-voltage supply such as electricity meters and overcurrent protection devices, and CAT III installations to 1,000V, which covers items used with enclosed building circuit installations, such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply. It comes with a test lead wrap, a pair of test probes, and instructions.
The voltage detector has visible and audible voltage indicators, and it performs a self-test to visually indicate that it is working. The unit automatically turns off after five minutes of non use to conserve battery life, and it signals when the meter's batteries need to be replaced. The unit operates on two AAA batteries. It meets International Electrotechnical Commission (IEC) safety standards 61010-1, and it is rated for CAT IV installations to 1,000V, which covers measurements at the source of the low-voltage supply such as electricity meters and over current protection devices.
The T+Pro comes with the Fluke 1AC-II voltage detector for detecting AC voltage from 90V to 1,000V.
