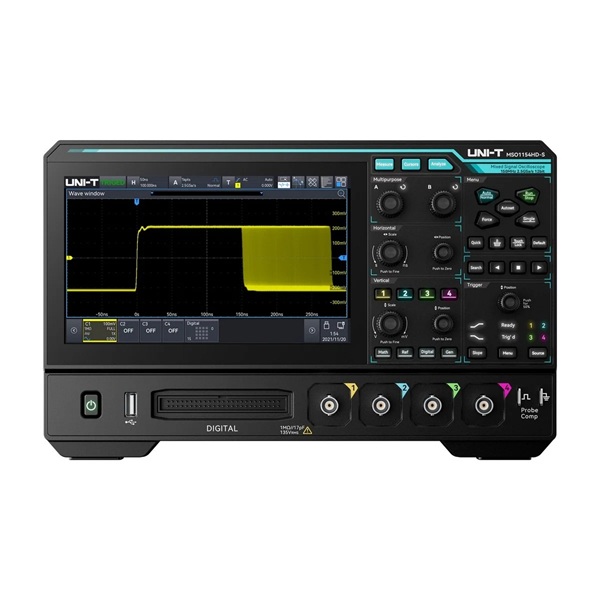

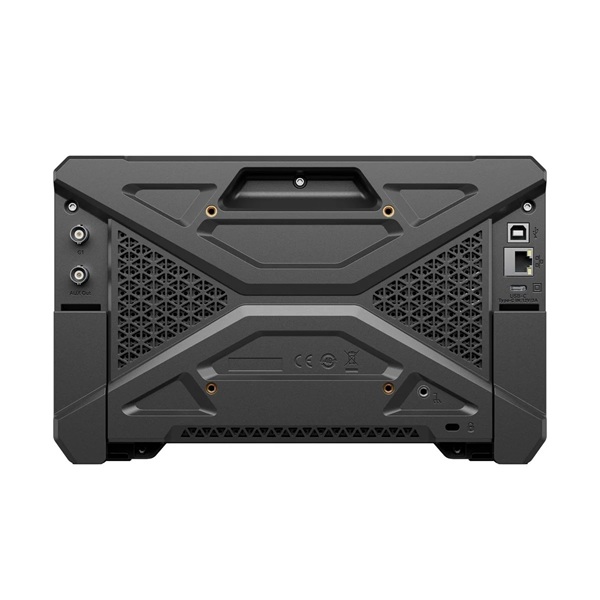

UNI-T MSO1154HD-S 150 MHz, 4-Channel, 12-bit Mixed Signal Oscilloscope with AWG + UT-M26 16Ch Logic Analyzer Probe

MSO1154HD-S  high-resolution oscilloscope has the maximum bandwidth of 150 MHz, the maximum sample rate of 2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels (optional), with the memory depth of up to 100 Mpts. MSO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 200,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter

The instrument also combines multiple tools into a 9-in-1 platform, including oscilloscope, logic analyzer, spectrum analyzer, protocol analyzer, power analyzer, and more reducing the need for multiple devices on the bench.

12-Bit High-Resolution ADC

• 4096-level quantization (16× finer than 8-bit ADCs) enables precise waveform detail restoration, ideal for capturing subtle signal variations.

High-Speed Signal Capture

• Bandwidth: 150 MHz
• Sample Rate: 2.5 GSa/s (single channel)
• Deep Memory: 100 Mpts/CH for long-term signal recording without data loss

Ultra Phosphor 3.0 Technology

• 200,000 wfms/s capture rate with low-jitter digital trigger system for real-time anomaly detection.

Compact Mixed-Channel Design

• Analog channels + 16 digital channels (MSO models) for concurrent analog signal analysis and digital protocol debugging.

Function/Arbitrary Waveform Generator

• 25 MHz equivalent performance single-channel output
• Sampling rate: 200 MSa/s
• Vertical resolution: 14-bit
• Multiple built-in standard waves: Sine, square, pulse, ramp, arbitrary, noise, and DC, AM, FM, ASK, FSK, and sweep frequency output

UT-M26
16-channel logic analyzer probe pod for MSO1000HD Series. Adds digital bus visibility for mixed-signal debugging of embedded, automotive, and industrial protocols.

• Standard BNC Connection — Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
• 16 Digital Channels — Adds digital bus visibility for debugging embedded, automotive, and industrial communication protocols.
• Compatibility — Compatible with UNI-T MSO1000HD ONLY.
