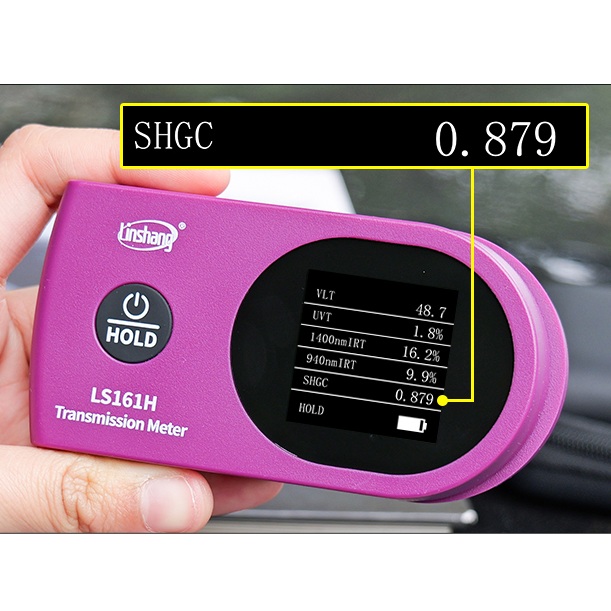

Linshang LS161H Transmission Meter

Name: LS161H Transmission Meter
Brand: Linshang
SKU: LS161H
Price: 14930.00 INR
Availability: OutOfStock

SKU: LS161H

Rs. 14,930.00 MRP ~~Rs. 16,500.00~~ Save Rs. 1,570.00 (10% off) Inclusive of GST-18%

Out of stock Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)

The instrument is a small and portable transmission meter, a real pocket product. It is suitable for simultaneously testing the IR and UV rejection rate, visible light transmittance,total solar energy rejection (TSER) and solar heat gain coefficient (SHGC)of various film materials (such as solar films, explosion-proof films, etc.). The instrument has a variety of display parameter combinations, and users can choose according to their needs.

Test seven parameters: UV, visible light, IR 940nm, IR 1400nm, Full-IR, TSER, SHGC
Free switching of multiple display modes
Suitable for solar film performance exhibition, production, quality inspection and other occasions

Product information

Everything you need to know

Technical Specifications

Parameter Name Parameter Value

UV Peak Wavelength 365nm

Visible Light Peak Wavelength 380nm-760nm,CIE function of photopic vision

IR Peak Wavelength Peak wavelength 940nm, 1400nm and Full IR

Solar Heat Gain Coefficient SHGC( 0.000 ~ 1.000)

Total Solar Energy Rejection TSER（0.0%-100%)

Resolution 0.1%

Accuracy ±2% (colorless uniform light-transmitting material)

Maximum Sample Thickness 0.8mm

Display 240*240 dot matrix TFT color screen

Weight about 70g (exclude batteries)

Size 101mm *52mm *25.5mm (L*W*H)

Warranty

1 year

What's in the Box

User manual

Application

It is suitable for simultaneously testing the IR and UV rejection rate, visible light transmittance,total solar energy rejection (TSER) and solar heat gain coefficient (SHGC)of various film materials (such as solar films, explosion-proof films, etc.).
