Linshang Authorized brand

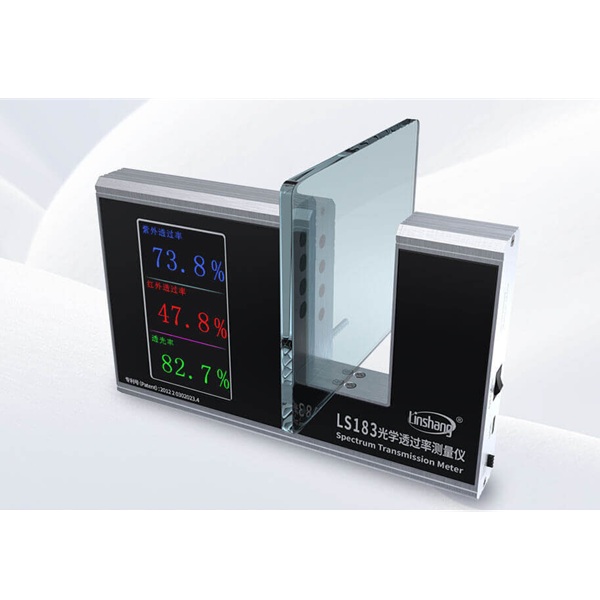

Linshang LS183 Spectrum Transmission Meter

SKU: LS0183
Rs. 41,400.00 MRP Rs. 43,400.00 Save Rs. 2,000.00 (5% off) Inclusive of GST-18%
Out of stock Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

LS183 spectrum transmission meter employing the parallel light path source.  is mainly used for the optical performance test of thermal insulation coatings, single-layer glass, laminated glass (insulating glass), glass with film, PMMA, PC and other materials. It can simultaneously test the transmittance of ultraviolet, infrared and visible light. The width of the test slot is 47mm. The meter uses ultraviolet light source, infrared light source and visible light source to illuminate the tested transparent material. The sensor determines the transmittance by detecting the original light intensity emitted by the three light sources and the transmitted light intensity after the light has passed through the transparent material. The final result is expressed as a percentage.

  • UV, IR and visible light transmission rates can be measured simultaneous
  • Test slot is 47mm wide, which can test large thickness of materials
  • Large LCD display with three different display interfaces



Product information

Everything you need to know

Technical Specifications

UV Peak Wavelength 365nm

IR Peak Wavelength   940nm

Visible Light Peak Wavelength           380nm-760nm (conform to CIE photopic luminosity function)

Resolution       0.1%

Measurement Accuracy        ± 2%(colorless and uniform transparent materials)

Test Sample Thickness           ＜ 47mm

Dimension      216 mm * 134 mm * 29 mm (L*W*H)

Test Slot Dimension  47mm * 91 mm（W*H）

Weight About 590g

Power Supply DC5V/1A

Warranty
1 year

What's in the Box

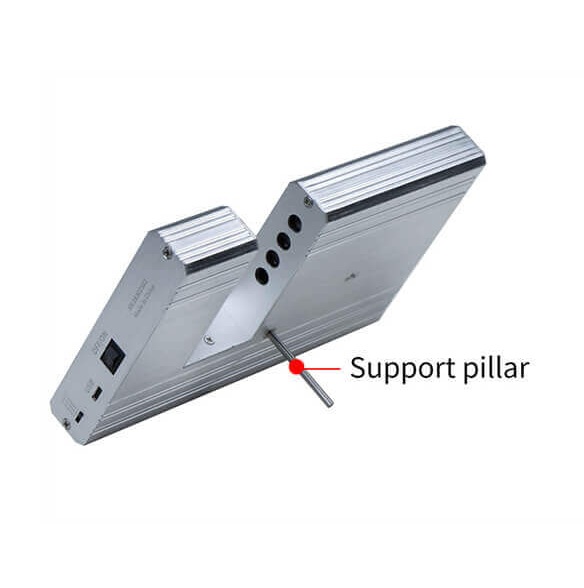

DC5V Adapter,User manual, Support pillar

Application

It is mainly used for the optical performance test of thermal insulation coatings, single-layer glass, laminated glass (insulating glass), glass with film, PMMA, PC and other materials
