Linshang Authorized brand

Linshang LS201 Digital Glass Thickness Meter

SKU: LS0201
Rs. 91,775.00 MRP Rs. 94,300.00 Save Rs. 2,525.00 (3% off) Inclusive of GST-18%
Out of stock Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

Linshang LS201 digital glass thickness meter uses the optical reflection principle to measure the glass thickness on one side of the glass. It is especially suitable for the measurement where general measurement tools such as scales or vernier calipers that cannot or are not easy to operate. Such as the thickness measurement of laminated glass and hollow glass. For the measurement of laminated glass, the thickness of multilayer glass and intermediate air layer can also be measured at the same time. The instrument uses CCD detection, liquid crystal display. It also has simple operation, fast and reliable measurement.

  • Laser reflection, one-side measurement is available

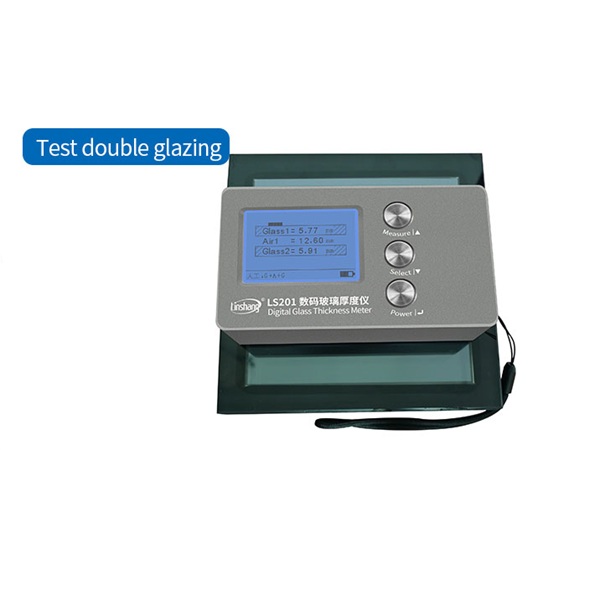

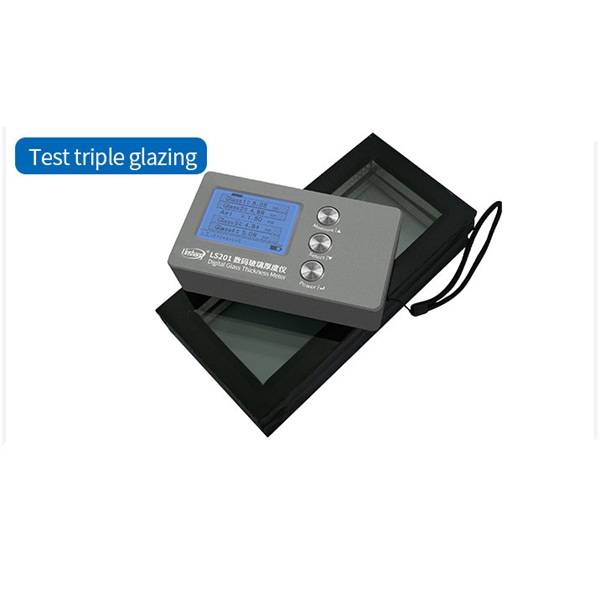

  • It can measure triple glazing, laminated glass and other types of glass



Product information

Everything you need to know

Technical Specifications

Parameter       LS201 Digital Glass Thickness Meter

Measurement Accuracy        ± (0.1mm + 1%H), H is the standard value

Measurement Range Glass thickness≤70mm，air layer thickness≤45mm

Weight 330g

Battery             4 AAA alkaline dry batteries

Display             240 * 160 dot matrix LCD

Test Slot Size  2mm * 38mm

Dimension      130mm×72mm×33mm (L*W*H)

Warranty
1 Year

What's in the Box

User Manual, Calibration report

Application

To measure the glass thickness on one side of the glass
