Linshang LS200 Glass Thickness Meter

SKU: LS0200
Rs. 41,400.00 MRP Rs. 43,400.00 Save Rs. 2,000.00 (5% off) Inclusive of GST-18%
Out of stock Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

LS200 glass thickness meter can be used for thickness measurement of single-layer glass, insulating glass and cylindrical glass bottles. It is especially suitable for measurement occasions where ordinary scales or calipers cannot or are not easy to operate, such as measuring the wall thickness of glass bottles and the thickness of laminated glass windows. For the measurement of the insulating glass thickness, the thickness of each glass layer and the intermediate air layer can be measured simultaneously. The glass thickness meter is suitable for the glass thickness measurement in quality inspection, supervision, teaching, production, sales, engineering construction and other occasions.

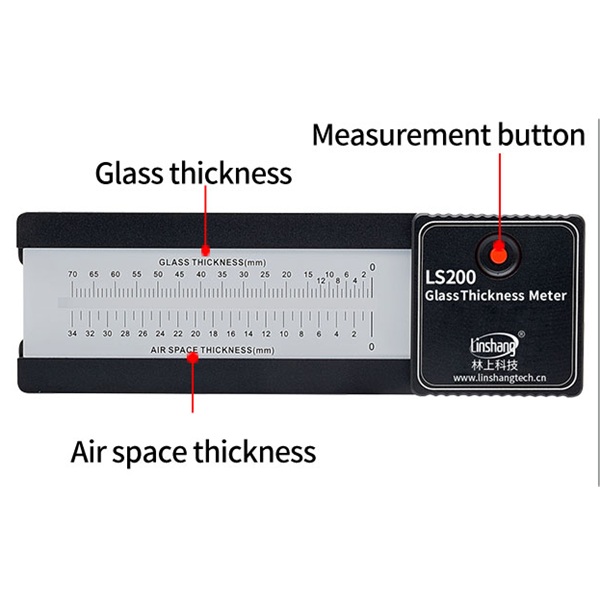

  • The meter can measure the thickness of air and glass layers simultaneously
  • Laser reflection principle, one-side measurement of the glass thickness measure the thickness of air interlayer and glass thickness simultaneous Glass Thickness Scale 70mm, Air Space Scale 34mm



Product information

Everything you need to know

Technical Specifications

Measurement Accuracy        ± 0.5mm

Measurement Range Glass thickness≤70mm, air interlayer≤34mm

Battery             Standard 2032 button battery

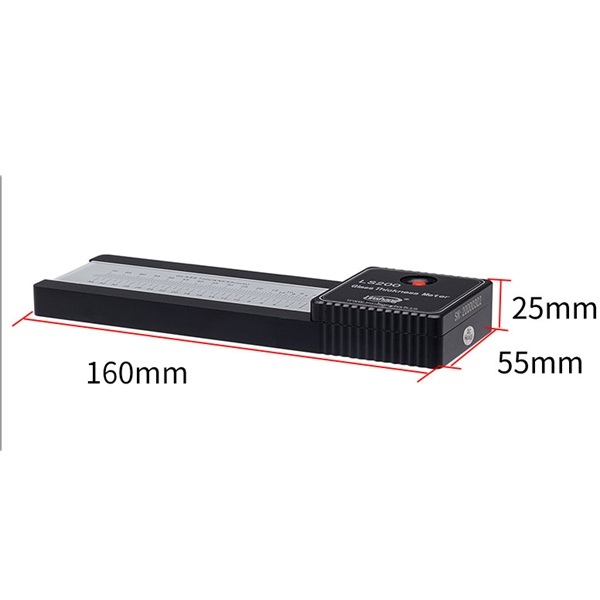

Dimension      160mm × 55mm × 25mm (L*W*H)

Test Slot Size  6mm * 94mm

Weight 250 g

Warranty
1 year

What's in the Box

User manual

Application

Thickness measurement of single-layer glass, insulating glass and cylindrical glass bottles
