Linshang Authorized brand

Linshang LS175 45/0 Colorimeter with 20mm Aperture

SKU: LS0175
Rs. 60,885.00 MRP Rs. 67,650.00 Save Rs. 6,765.00 (10% off) Inclusive of GST-18%
In Stock (2 available) Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Quantity to add

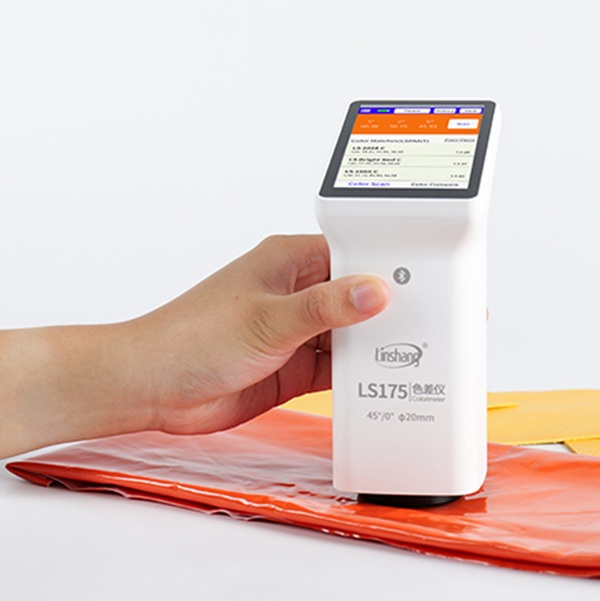

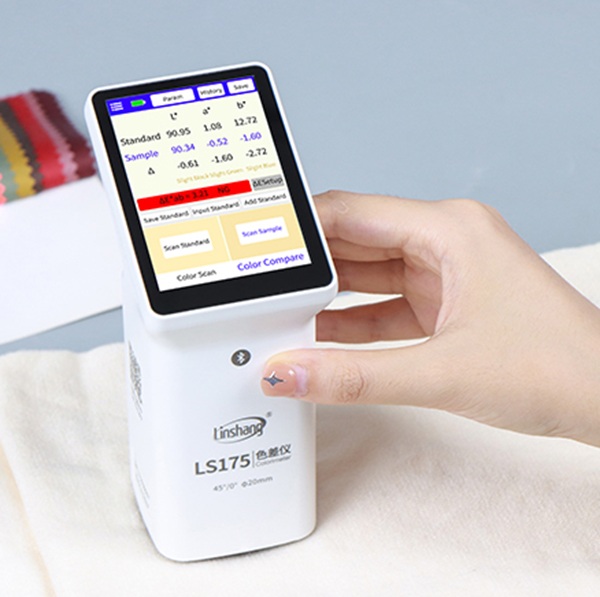

LS175 is a handheld 45/0 illumination geometry colorimeter with a large 20mm measuring aperture, a 3.5-inch IPS color capacity touch screen, and can connect with mobile phone or PC. This device can work independently without connecting APP on mobile phone or PC software. Several color charts helps matching the closest color number of scanned color in short time. The device also has color comparison function, supporting multiple methods of adding standard. Availability of setting threshold of color difference ensures QC quick inspcetion. The device can connect APP and PC software, expanding its functions such as color sharing and printing report.

  • Large measuring aperture, higher precision
  • Built-in multiple electronic color charts
  • CIE Lab color deviation indication
  • Achieve more efficient quality control



Product information

Everything you need to know

Technical Specifications

Illumination geometry            45/0 (45° annular illumination, 0° viewing angle)

Illumination light source        Full spectrum LED light source

Spectral Range            400-700nm

Spectral Interval         10nm

Measuring aperture   20mm

Measurement conditions      Light source D65, field of view 10°

Measuring time           1s

Color space    CIE Lab、LCh、Luv、Yxy、CMYK、RGB、YI-98

WI-98、WI-Ganz、WI-Hunter、WI-R457、HSL、HSV、ITA、Spectra

Color difference formula       ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00、ΔE*cmc(1.4:1)

Repeatability Standard deviation ΔE*ab ≤ 0.03

(Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)

Dimension      86mm X 62.5mm X 158mm

Weight 225g

Power supply Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge

Display             480×320 dot matrix IPS color screen

Language         Simplified Chinese, English, Turkey

Charging port USB(Type-C)

Data transmission     USB, Bluetooth

Operating temperature range            0~45℃，0~85%RH（no condensation）

Storage temperature range   -25~55℃，0~85%RH（no condensation)

Warranty
1 year

What's in the Box

Includes USB Cable, cleaning cloth, Locating plate, User manual, Calibration report

Application

As it can measure larger area to acquire more even color data with its large 20mm measuring aperture, LS175 has wide application in color measurement and widely used in industries of textiles, leather, fabrics and wood furniture.
