Linshang Authorized brand

Linshang LS172 45/0 Colorimeter with Touch Screen

SKU: LS1720
Rs. 24,430.00 MRP Rs. 26,400.00 Save Rs. 1,970.00 (8% off) Inclusive of GST-18%
Out of stock Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

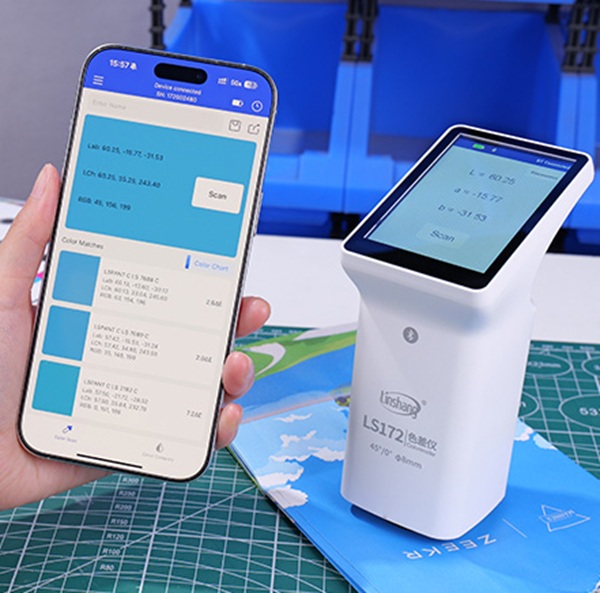

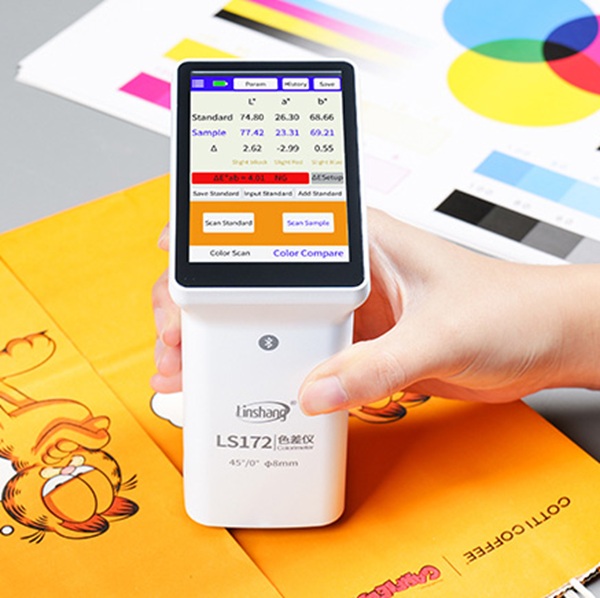

LS172 is a handheld multifunctional colorimeter designed with a 45/0 annular illumination geometry. It uses a 3.5-inch IPS capacitive touch screen to provide an excellent operating experience. The color analyzer integrates multiple color charts, and it can quickly match the three closest color codes. The colorimeter also has a color comparison function, and supports a variety of standard color addition methods. The color difference threshold can be set, and the color difference formula can be flexibly selected, which can realize rapid QC testing.

  • Touch screen operation, perfect experience
  • Integrating multiple electronic color charts
  • CIE Lab values indication



Product information

Everything you need to know

Technical Specifications

Illumination geometry            45/0 (45°annular illumination, 0° viewing angle)

Illumination light source        Full spectrum LED light source

Spectral Range            400-700nm

Spectral Interval         10nm

Measuring aperture   8mm

Measurement conditions      Light source D65, field of view 10°

Measuring time           About 1s

Color space    CIE Lab、LCh、Luv、Yxy、CMYK、RGB、YI-98

WI-98、WI-Ganz、WI-Hunter、WI-R457

HSL、HSV、ITA、Spectra

Color difference formula       ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1)

Repeatability Standard deviation ΔE*ab ≤ 0.03(Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)

Dimension      86mm×62.5mm×158mm

Weight About 225g

Power supply Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 times continuously under full charge

Display             480×320 dot matrix IPS color screen

Language         Simplified Chinese, English, Turkey

Charging port USB (Type-C)

Operating temperature range            0~45℃, 0~85%RH (no condensation)

Storage temperature range   -25~55℃, 0~85%RH (no condensation)

Warranty
1 year

What's in the Box

Includes USB Cable, cleaning cloth, Locating plate, User manual, Calibration report

Application

LS172 colorimeter is usually used in product color measurement and management, and product color difference quality control in paper printing.
