Linshang LS192 Digital Gloss Meter

Name: LS192 Digital Gloss Meter
Brand: Linshang
SKU: LS0192
Price: 36990.00 INR
Availability: OutOfStock

SKU: LS0192

Rs. 36,990.00 MRP ~~Rs. 38,000.00~~ Save Rs. 1,010.00 (3% off) Inclusive of GST-18%

Out of stock Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)

LS192 is a hand-held gloss meter with universal measuring angle 60° and its measuring range is 0-1000GU. The instrument is widely used in surface gloss measurement on paint, coating, metal, ceramics, stone, printed material. It's so convenient that you can use even without pressing button. QC mode is optional to conduct quick QC process. This instrument supports connection to a computer for measurement. Measurement results can be exported as an Excel file, making measurement data management more professional.

Universal angle 60°, large range up to 1000GU
Provide free PC software
Automatically judge whether the data is qualified in QC mode
Adopting the D65 light source to make sure the accurate measurements
Provide real time measurements and put-and-measure services without pressing button.
Detect samples quickly with QC judging function.
The environmental temperature compensation function guarantees long-term calibration stability.
The instrument supports PC-connected measurement and Excel file export, making it convenient for subsequent organization, analysis, and archiving.
Equipped with aviation aluminum housing and calibration holder, it’s small and easy to carry.
Built in rechargeable lithium battery, with ultra-low power consumption, it can work continuously for more than 48 hours under full charge

Product information

Everything you need to know

Technical Specifications

Measure angle 60°

Measuring Light spot 9mm*15mm

Minimum test material size 20mm*10mm

Test Range 0-1000GU

Resolution 0.1GU

Repeatability 0-120GU：±0.2GU

120-1000GU：±0.2%

Reproducibility 0-120GU：±0.5GU;

120-1000GU：±0.5%

Zero error 0.1GU

Error of indication 0-120GU：±1.5GU

120-1000GU：±1.5%

Battery capacity rechargeable lithium3.7V@1000mAh

Display 192×64

System language Chinese(Simplified), English

Charging interface USB(Type-C)

Data Interface USB

Size 102*35*51mm

Weight About 300g

Working temperature 10~45℃，0~85%RH（no drew）

Storage temperature -10~60℃，0~85%RH（no drew）

Warranty

1 year

What's in the Box

Includes 1 USB Data Cable, 1 Special Lens Cloth, 1 user manual, 1 Calibration Report

Application

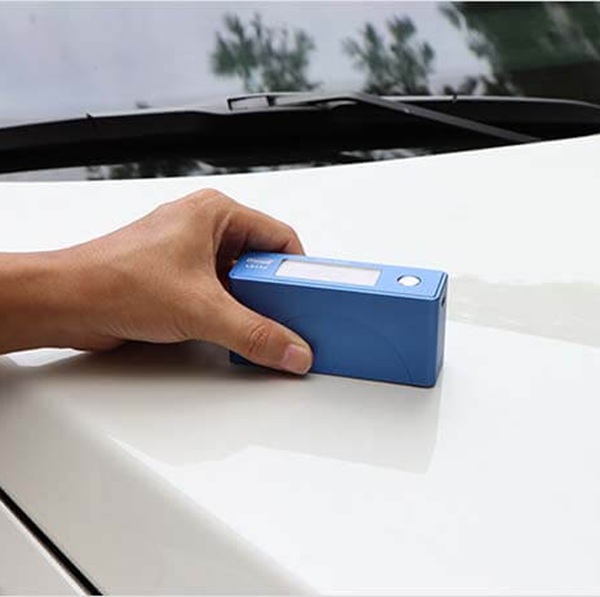

Measures ceramic, PC, Marble, car
