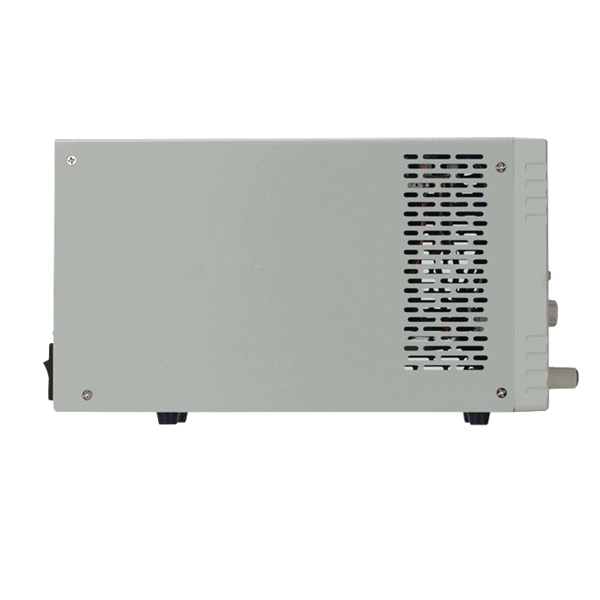

OWON OEL3030TV DC Electronic Load Tester- 300V, 30A- 300W

SKU: OE3030T
Rs. 24,460.00 MRP Rs. 27,500.00 Save Rs. 3,040.00 (12% off) Inclusive of GST-18%
In Stock (10 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

OWON OEL3030TV Programmable DC Electronic Load with 300V, 30A, and 300W capacity. Features CC/CV/CR/CP modes, dynamic testing up to 5kHz, USB/RS232 communication, SCPI support, and multiple protection functions for professional DC power testing.

  • Compact size,Portable and movable high-performance programmable electronic load
  • 2.8-inch TFT color LCD display
  • Four operation modes: CV, CC, CR, CP
  • Supports dynamic current testing up to 5kHz
  • High resolution readback: 1mV/0.1mA
  • Supports remote sensing compensation
  • Multiple protections including OVP/OCP/OPP/OTP

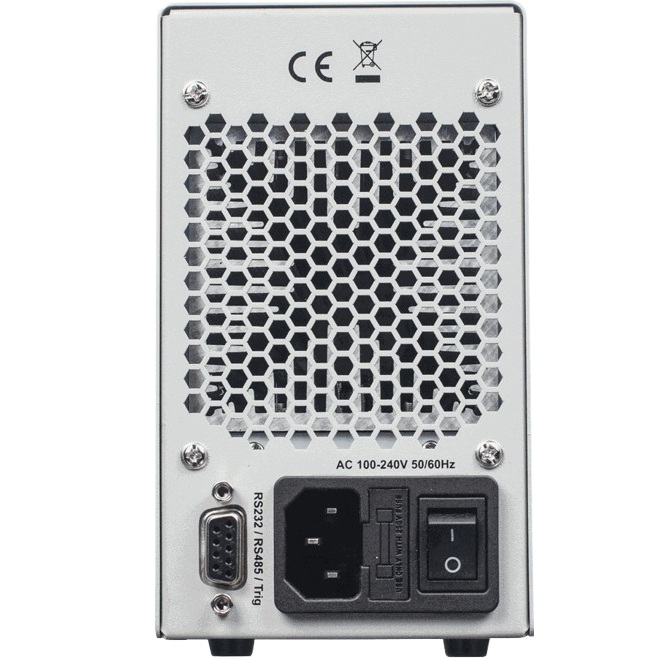

  • RS232,USB Device，SCPI protocol support
  • Optional test functions: Battery Discharge Test, OCP Test, OPP Test (Order No.OEL-T1)- INCLUDED
  • Optional test functions:Riplle Test (Order No.OEL-V)- INCLUDED



Product information

Everything you need to know

Technical Specifications

Input voltage  0 – 300 V

Input current  0 – 30 A

Continuous power     300 W

Minimum operate voltage     1.1 V @ 30 A

Static modes

CV range / resolution 0 – 300 V · 1 mV · 0.05% + 0.05% FS

CC range / resolution              0 – 30 A · 1 mA · 0.05% + 0.05% FS

CR range / accuracy  0.05 Ω – 7.5 kΩ · 0.1% + 0.01% R

CP range / resolution 300 W · 10 mW · 0.1% + 0.1% FS

Short-circuit simulation        CC > 30 A · CV 0 V · CR 50 mΩ

Dynamic mode (CC)

Frequency       up to 5 kHz

T1 & T2 timing 0.1 ms – 50 s

Rise/fall slope              0.01 A/ms – 2000 A/ms

Minimum rise time     20 µs

Readback

Voltage             0 – 30 V / 0 – 300 V · 1 mV · 0.05% + 0.05% FS

Current             0 – 30 A · 0.1 mA · 0.05% + 0.05% FS

Power  0 – 300 W · 10 mW · 0.1% + 0.1% FS

Warranty
1 year

What's in the Box

Includes power cord, spare fuse and user manual.

Application

SMPS testing
Charger and adapter testing
Battery discharge testing
Solar DC output testing
LED driver testing
Automotive electronics testing
R&D laboratories
Service and repair centers
