UNI-T Authorized brand

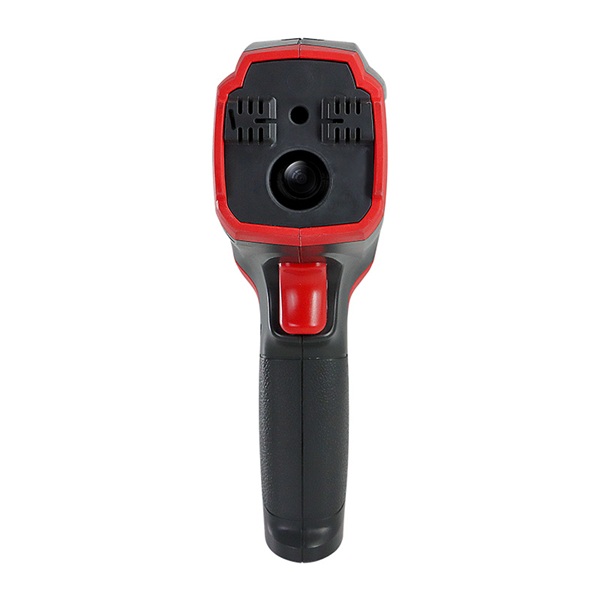

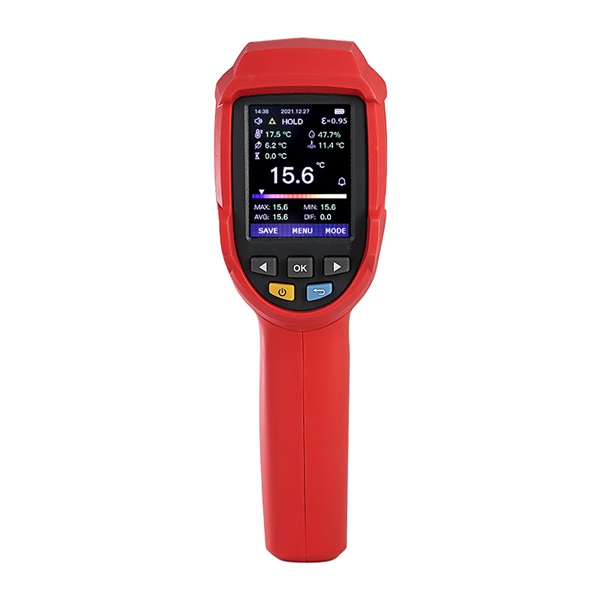

UNI-T UT305A+ Infrared Thermometer

SKU: UT305A
Rs. 20,000.00 MRP Rs. 23,500.00 Save Rs. 3,500.00 (15% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The UT305+ series is a high-precision, high-distance ratio (55:1), wide temperature range (-50°C~ 2200°C) non-contact infrared thermometer. It can detect the thermal insulation performance of various types of equipment, and is suitable for furnace kilns, heat transfer pipes, building thermal bridge effect, cold storage, greenhouses, floor heating and other fields.


Features:



  • Infrared professional mode
  • Surface heat conduction detection mode
  • Surface dew point detection mode
  • Surface temperature comparison mode
  • High resolution TFT color LCD
  • Trigger lock function，Reservation measurement
  • 999 groups of data storage, data output support PDF, CSV format
  • High precision display of ambient temperature, relative humidity, dew point temperature and wet bulb temperature
  • Type K thermocouple temperature measurement



Product information

Everything you need to know

Technical Specifications

Infrared temperature measurement             -50°C~1850°C (-58.0℉～3362℉)

The environment temperature measurement         -10°C~50°C (14℉～122℉)

Relative humidity       10%RH~90%RH

Type K thermocouple              -50°C~1370°C (-58.0℉～2498℉)

Diastance ratio（D:S)            55:1

Emissivity        0.1~1.0 (adjustable)

Spectral response      8µm~14µm

Repeatability of infrared temperature measurement              ±0.005×t℃（℉）or 1℃（2℉） （Which is greater）

Display resolution      0.1℃（0.1℉）

Unit conversion           ℃ / ℉

Laser point      Single laser, output < 1 mW, class II

Data storage   999 groups

Data output format    PDF、CSV

Data communication or charging interface             Type-C USB

Battery             Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery

Charging time   No more than 3 hours

Measurement range  -40°C to 260°C (-40°F to 500°F)

Accuracy 0.075× T (t is measured temperature)

Lenth   1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector and bead probe

Warranty
3 years

What's in the Box

Standard accessories Type-C data cable, Type K thermocouple probe (bead Type), instruction manual, warranty card

Application

HVAC maintenance, Surface temperature comparison
