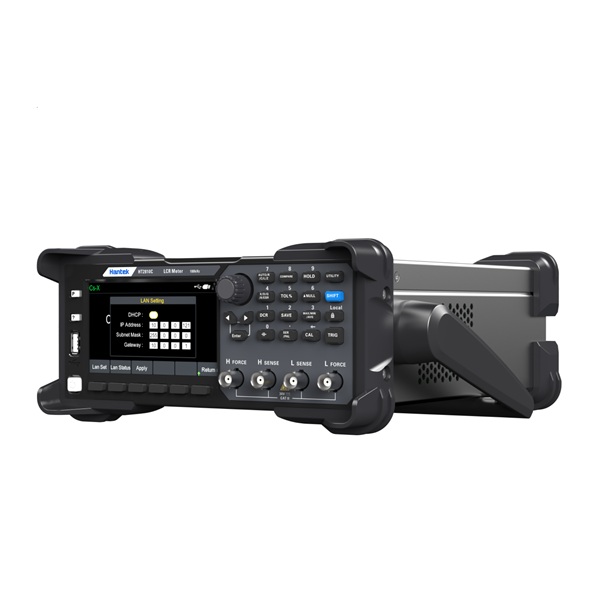

Hantek HT2810C Benchtop LCR Meter- 100KHz

SKU: 2810CH
Rs. 40,000.00 MRP Rs. 43,000.00 Save Rs. 3,000.00 (7% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece User manual (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

Automatic identification of component types; Maximum test signal frequency: 100 kHz; AC test signal level: 100 - 2000 mVrms; DC bias voltage: 0 - 1500 mV; Supports DC resistance and electrolytic capacitor measurement; Basic accuracy: 0.1%; Supports open-circuit and short-circuit calibration; Data hold and data logging functions; 4.3-inch LCD display with support for Chinese and English interfaces; Standard interfaces: USB HOST, USB DEVICE, LAN, RS232/485, Handler; Supports SCPI communication protocol; Handler interface with support for comparator sorting.

  • Automatic identification of component types.
  • Maximum test signal frequency: 100 kHz.
  • AC test signal level: 100mV-2000mV continuously adjustable，1mV steps
  • DC bias voltage: 0mV-1500mV adjustable，1mV steps
  • Supports DC resistance and electrolytic capacitor measurement.
  • Basic accuracy: 0.1%.
  • Supports open-circuit and short-circuit correction.
  • Data hold and data logging functions.
  • 4.3-inch LCD display with support for Chinese and English interfaces.
  • Standard interfaces: USB HOST, USB DEVICE, LAN, RS232/485, Handler.
  • Supports SCPI communication protocol.
  • Handler interface with support for comparator sorting.



Product information

Everything you need to know

Technical Specifications

Model  HT2810C

Test signal frequency              100Hz-100kHz continuously adjustable，1Hz steps

Display digits Main Parameter: 5 digits, Second Parameter: 5 digits

Test Parameter            Main：R/C/ L/Z；Secondary：X/D/Q/θ/ESR

Parameter display  range       R           0.0001Ω - 99.99MΩ

                                               C           0.001pF - 9999μF

                                                L            0.001μH - 9999H

Basic accuracy           0.10%

Display speed             Slow: 2 times/second；Middle: 5 times/second;         Fast: 10 times/second;

AC test signal level (Vrms)    100 - 2000mV continuously adjustable, 1mV steps

DC bias voltage           0 - 1500mV adjustable, 1mV steps

Range mode   Auto, Optional special range

Signal source output impedance     Selectable 30Ω, 100Ω

Correction       Open, Short

Equivalent circuit       Serial, Parallel

Trigger mode  Auto, Bus, EXT

Save/Recall    Setting parameters can be saved internally with 6 sets of positions, which can be recalled by user.

DCR display range     0.0001Ω ~ 99.99MΩ

Comparator function              Tolerance range：-100% ~ +100%;

5 Bins (BIN:1, BIN:2, BIN:3, BIN:OUT, BIN:AUX)

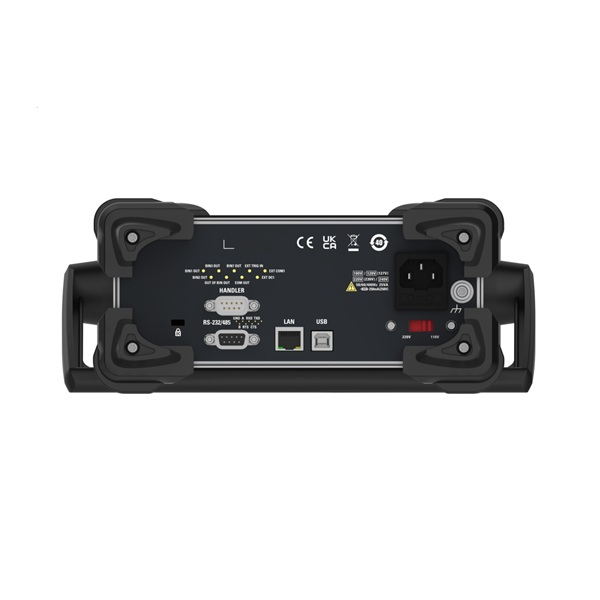

Interface          USB HOST, USB DEVICE, LAN, RS232/485, Handler

Language         Chinese, English

LCD display    Backlight brightness adjustable

Other   Electrolytic Capacitor Test Mode，Keyboard Lock Function

Operating Environment          0℃-40℃, 15%-85%RH.

Dimensions    Including the sheath: 308*231.5*109.5mm（L*W*H）

                       Not including the sheath: 263.6*213.6*88.6mm（L*W*H）

Warranty
3 year

What's in the Box

Accessories:  Power Cord, USB Cable, Packing List, Four-terminal insulation test leads

Application

Check resistors, capacitors, inductors, and other passive components.
