UNI-T Authorized brand

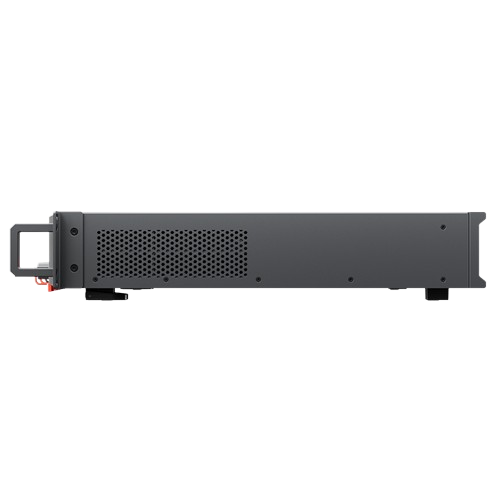

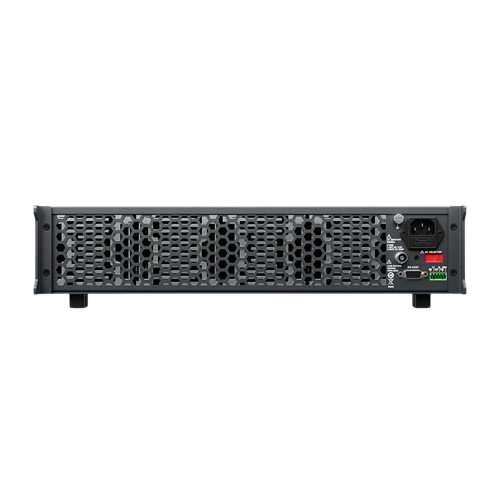

UNI-T UTL8516C+ DC electronic load 150V, 240A

SKU: UT856CP
Rs. 489,600.00 MRP Rs. 550,000.00 Save Rs. 60,400.00 (11% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

The UNI-T UTL8516C+ is a high-power, intelligent programmable DC electronic load from the UTL8500X+ series by UNI-T. It is engineered for heavy-duty industrial testing, laboratory research, and power electronics R&D requiring high current and power handling.

Features:

  • Voltage Range: Up to 150V
  • Current Capacity: Up to 240A
  • Total Power Handling: 3000W (3kW)
  • Resolution: 0.1mV / 1mA
  • Max Dynamic Frequency: 50kHz
  • Current Slew Rate: 4.8A/ms to 24A/µs
  • Form Factor / Size: 4U rack/bench height
  • Interface Connectivity: RS232 standard
Product information

Everything you need to know

Technical Specifications

Model UTL8516B+

Voltage 150V

Current 240A

Total power 3000W

Resolution 0.1mV/1mA

Max Dynamic Frequency 50kHz

Current Slew Rate 4.8A/ms-24A/μs

Size 4U

Connectivity RS232

Warranty
As per Brand policy

Recommended Uses

Industrial testing, laboratory research, and power electronics R&D requiring high current and power handling.
