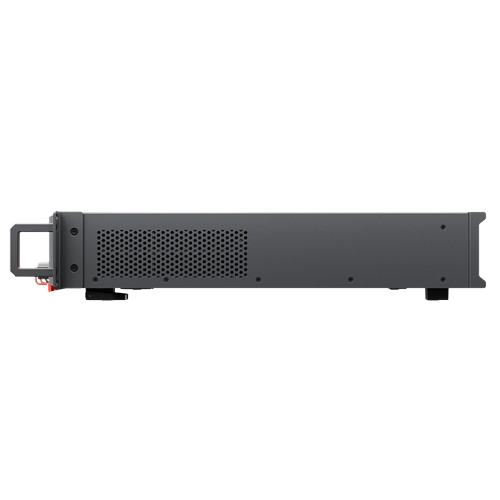

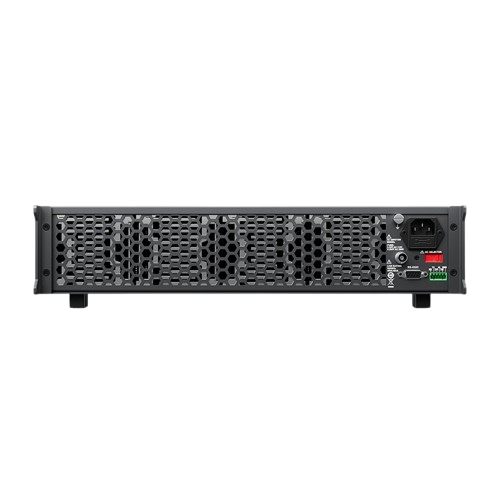

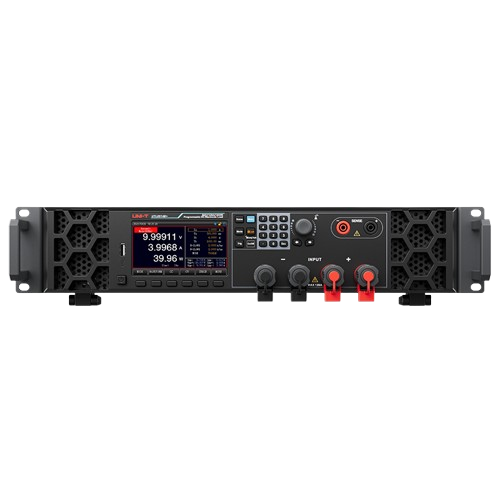

UNI-T UTL8516B+ DC electronic load 500V, 240A

The UNI-T UTL8516B+ is a high-power, intelligent programmable DC electronic load from the UTL8500X+ series by UNI-T. It is engineered for heavy-duty industrial testing, laboratory research, and power electronics R&D requiring high current and power handling.

Features:

Voltage Range: Up to 500V
Current Capacity: Up to 240A
Total Power Handling: 3000W (3kW)
Resolution: 0.1mV / 1mA
Max Dynamic Frequency: 50kHz
Current Slew Rate: 4.8A/ms to 24A/µs
Form Factor / Size: 4U rack/bench height
Interface Connectivity: RS232 standard

Technical Documents - 1

Rs. 550,000.00 /each Save Rs. 60400 (11% Off)

Rs. 489,600.00 /each (Incl GST-18%)

Technical Specifications

Model UTL8516B+

Voltage 500V

Current 240A

Total power 3000W

Resolution 0.1mV/1mA

Max Dynamic Frequency 50kHz

Current Slew Rate 4.8A/ms-24A/μs

Size 4U

Connectivity RS232

Warranty: As per Brand policy

Uses

Industrial testing, laboratory research, and power electronics R&D requiring high current and power handling.

Technical Specifications
Uses

Model UTL8516B+

Voltage 500V

Current 240A

Total power 3000W

Resolution 0.1mV/1mA

Max Dynamic Frequency 50kHz

Current Slew Rate 4.8A/ms-24A/μs

Size 4U

Connectivity RS232

Warranty: As per Brand policy

Industrial testing, laboratory research, and power electronics R&D requiring high current and power handling.
