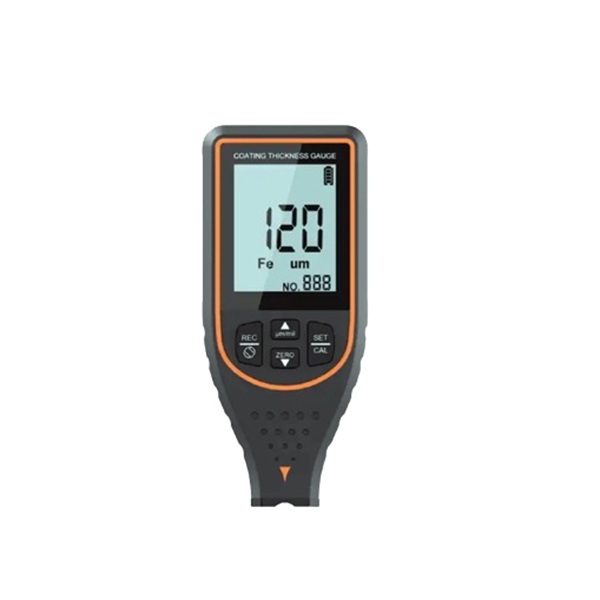

Product Type Digital Coating Thickness Gauge
Measuring Range (Magnetic Substrates) 0 – 1700 µm
Measuring Range (Non-Magnetic Substrates) 0 – 1700 µm
Resolution 0.1 µm (0–99.9 µm), 1 µm (100–1700 µm)
Indication Error ±(2 + 2%H) µm (0–500 µm), ±(2.5%H) µm (500–1700 µm)
Minimum Measuring Area 25 × 25 mm (Magnetic & Non-Magnetic)
Minimum Curvature Convex: 5 mm, Concave: 30 mm
Minimum Substrate Thickness Magnetic: 0.2 mm, Non-Magnetic: 0.05 mm
Display Segment LCD
Memory Capacity 30 Measurement Sets
Power Supply 2 × 1.5V AAA Batteries
Operating Temperature 0°C to 50°C
Operating Humidity 10% to 80% RH
Storage Temperature -10°C to 60°C
Storage Humidity 10% to 70% RH
Dimensions 120 × 52 × 27 mm
Warranty:
As per Brand policy
It is ideal for automotive inspection, paint and coating analysis, electroplating, manufacturing, quality control, and industrial maintenance.
