HTC Instruments

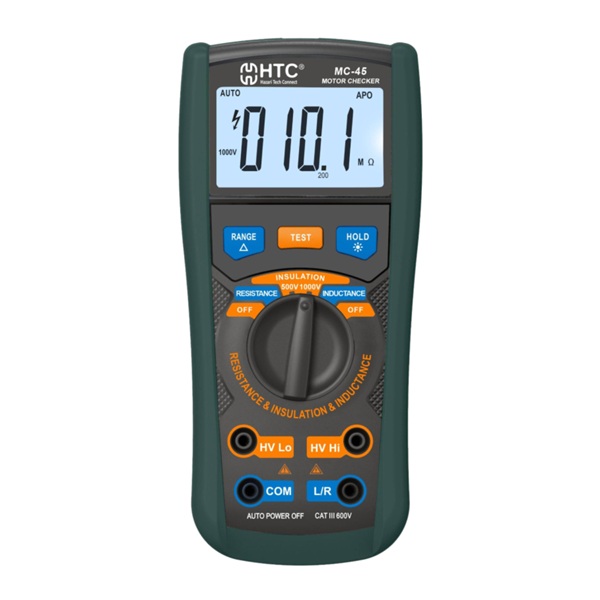

HTC Instruments MC-45 Digital Motor Checker

SKU: MC0045
Rs. 13,770.00 MRP Rs. 15,000.00 Save Rs. 1,230.00 (9% off) Inclusive of GST-18%
In Stock (4 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

MC-45, Digital Motor Checker , Insulation Resistance Measurement, Detect Rotor Bar Problems Without Dismounting The Rotor, Identify Open And Short Circuits / Loose Connections In Winding Coil, Identify Inter Term Shorts

Features

  • 3½ DIGITS
  • 1,999 COUNT
  • Insulation Resistance Measurement
  • Identify Inter Term Shorts
  • Identify Open And Short Circuits / Loose Connections In Winding Coil
  • Detect Rotor Bar Problems Without
  • Dismounting The Rotor
  • Inductance Of The Winding With Respect Ro Different Positions For Rotor For Detecting Blow Holes Or Crackes In The Rotor Bars.
  • Data Hold
  • Auto Range Switching
  • Highly Accurate, Easy To Use
  • Milliohm Resistance
  • Used In Laboratories, Factories, Radio Industry, Electrical Vehicle Repair, Electronic Manufacturing And Maintenance, Power Installation

 Accessories   Test Lead, Shockproof Cover, Carry Case, 1 set of Crocodile Clips, Manual & Battery

Product information

Everything you need to know

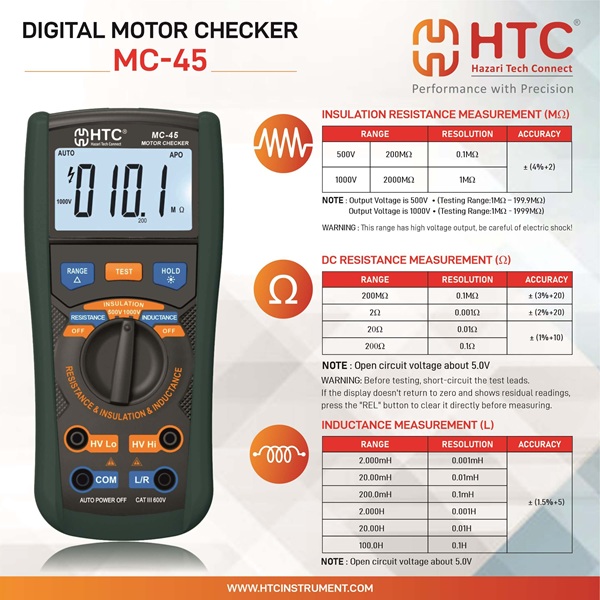

Technical Specifications

DC RESISTANCE MEASUREMENT (Ω)

RANGE             RESOLUTION        ACCURACY            NOTE

200MΩ             0.1MΩ                 ± (3%+20)       Open circuit voltage about 5.0V

2Ω                       0.001Ω             ± (2%+20)

20Ω                      0.01Ω                ± (1%+10)

200Ω                   0.1Ω                   ± (1%+10)



INDUCTANCE MEASUREMENT (L)

RANGE         RESOLUTION       ACCURACY             NOTE

2.000mH         0.001mH                ± (1.5%+5)       Open circuit voltage about 5.0V

20.00mH         0.01mH

200.0mH         0.1mH

2.000H             0.001H

20.00H             0.01H

100.0H             0.1H

Warranty
As per Brand policy

Recommended Uses

Used In Laboratories, Factories, Radio Industry, Electrical Vehicle Repair, Electronic Manufacturing And Maintenance, Power Installation
