HTC Instruments

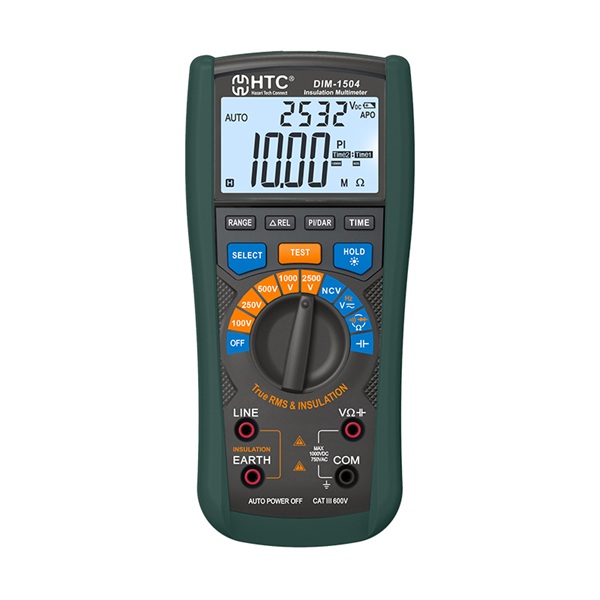

HTC Instruments DIM-1504 Digital Insulation Multimeter

SKU: DIM504
Rs. 4,150.00 MRP Rs. 5,500.00 Save Rs. 1,350.00 (25% off) Inclusive of GST-18%
In Stock (5 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

3⅚ Digits, 5999 Counts, True RMS, Measures AC/DC Voltage, Resistance, Capacitance, Frequency, Insulation Resistance with Auto Switching

Features

  •  3 ⅚ Digits
  • 5,999 Count
  • True Rms
  • Insulation Resistance
  • Duty Cycle
  • Data Hold
  • Auto Range Switching
  • Dual Integral A/D Conversion Integrated Circuit
  • Automatic Range Mode

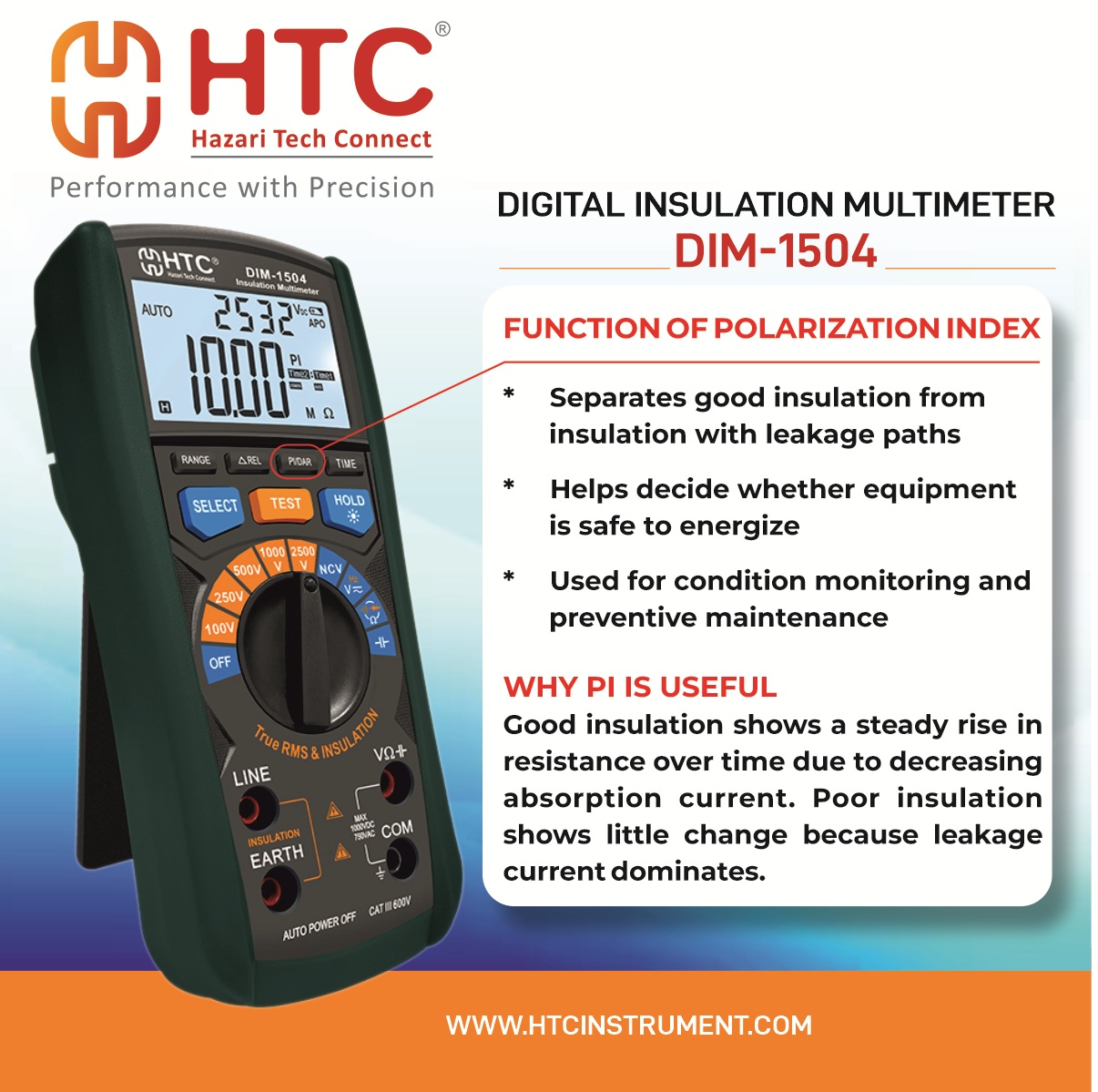

  • Polarization Index (Pi) Function
  • Absorption Ratio Functions

 Accessories   Test Lead, Protect Holester, Test Lead, Aligator Clip Test Lead, Manual & Battery.

Product information

Everything you need to know

Technical Specifications

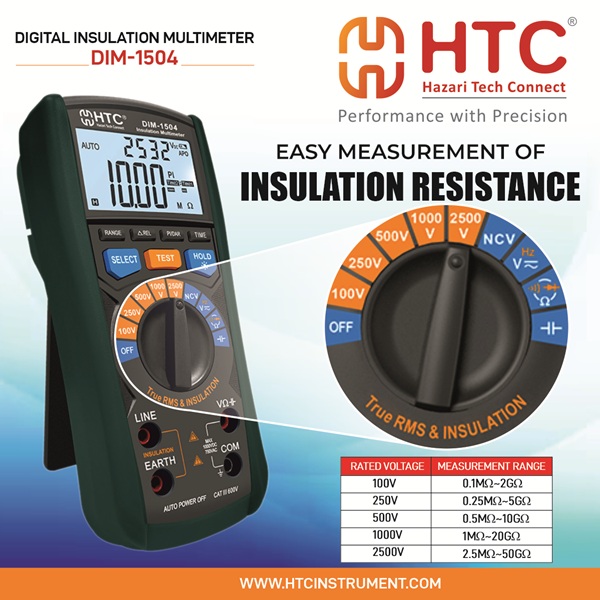

INSULATION TESTER TECHNICAL SPECIFICATIONS

RATED VOLTAGE         MEASUREMENT RANGE              ACCURACY

100V                                            0.1MΩ~2GΩ                       ± (3%+5)

250V                                          0.25MΩ~5GΩ               0.25MΩ~399.9MΩ : ± (3%+5)

500V                                           0.5MΩ~10GΩ        0.4MΩ~2GΩ : ± (5%+5)

1000V                                        1MΩ~20GΩ              2.001GΩ~10GΩ : ± (8%+5)

2500V                                     2.5MΩ~50GΩ              10.01GΩ~50GΩ : ± (10%+5)

DC VOLTAGE

RANGE             RESOLUTION ACCURACY

6V~1000V        0.001V~1V      ±(0.5%+3)

DISPLAY RANGE

VOLTAGE         DISPLAY RANGE (AUTO RANGE)              RESOLUTION

100V                                 4M/40M/400M/2GΩ            0.001M~0.001GΩ

250V                              4M/40M/400M/4G/5GΩ

500V                              4M/40M/400M/4G/10GΩ

1000V                             4M/40M/400M/4G/20GΩ

2500V                           40M/400M/4G/40G/50GΩ              0.01M~0.01GΩ

RESISTANCE

RANGE             RESOLUTION               ACCURACY

600Ω~6MΩ     0.1Ω~0.001MΩ           ±(0.5%+3)

60MΩ                           0.01MΩ                 ±(2%+5)

Warranty
As per Brand policy

Recommended Uses

Industrial Manufacturing Plants, Railways, Marine, Aviation, Construction, Renewable Energy
