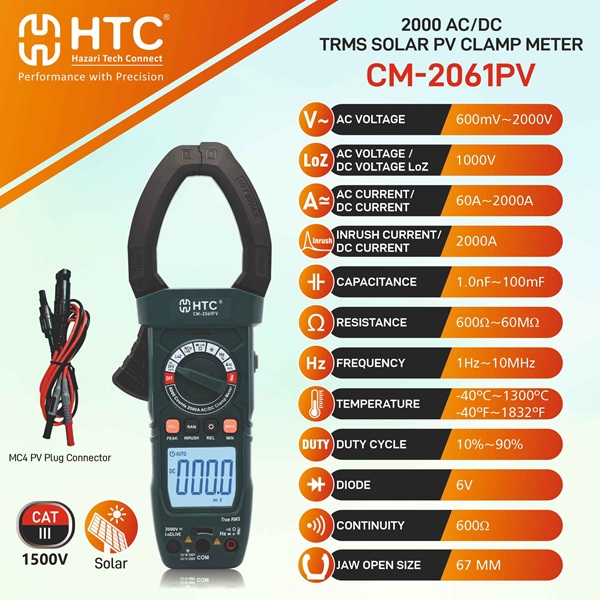

AC VOLTAGE / DC VOLTAGE LoZ
RANGE RESOLUTION ACCURACY OVERLOAD PROTECTION
1000V 1V ±(2.0%+5) 1000V DC / AC
INRUSH CURRENT, DC CURRENT (A~Hz%)
RANGE RESOLUTION ACCURACY OVERLOAD PROTECTION
INRUSH CURRENT ACA 2000A 1A ±(10%+10) 2000A
AC CURRENT, DC CURRENT (A~Hz%)
RANGE RESOLUTION DCA ACA OVERLOAD PROTECTION
60A 0.01A 2000A
600A 0.1A ±(2.0%+5) ±(2.0%+5)
2000A 1A –
FREQUENCY / DUTY CYCLE (Hz%)
RANGE RESOLUTION ACCURACY OVERLOAD PROTECTION
1Hz~10MHz 0.001Hz~1kHz ±(1.0%+3) 600V DC/AC
10.0%~99.9% 0.1% ± (2.6%+7)
Warranty:
As per Brand policy
Residential Use, HVAC, Automotive, Research
