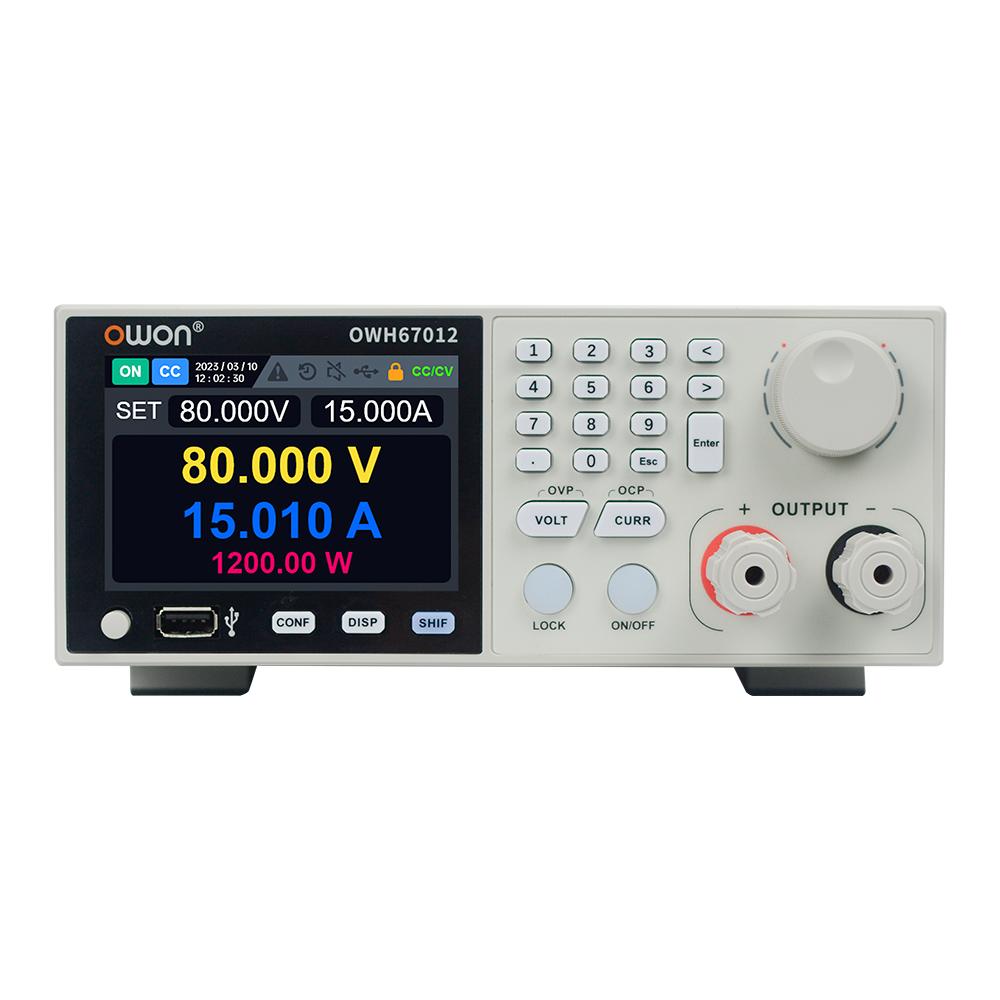

OWON OWH67012-80 High Power Programmable Power Supply- 80V, 30A, 1200W

1/2U standard 19-inch rack mount
Supports wide voltage input (85V–265V) to meet the needs of different countries
High-precision constant power output of 1200W
80V/30A/1200W wide range output
High output resolution: 10mV / 1mA
Supports 100-step LIST waveform programmable output
CV/CC priority with adjustable rise/fall time
Built-in discharge circuit for output
Supports SCPI and USB serial communication for remote control
Supports analog input/output as well as dry contact functionality
3.9" TFT LCD capable of real-time display of voltage/current curves and online recording of 1-minute data, achieving integrated source-meter functionality for convenient anomaly detection and capture.

Technical Documents - 1

Rs. 105,000.00 /each Save Rs. 8500 (9% Off)

Rs. 96,500.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	1291

Dispatched (in Days): Sane Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

1 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Output: 0–80V, 0–30A, 1200W
Type: Single Channel Programmable DC
Mode: CV / CC
Resolution: 10 mV / 1 mA
Ripple & Noise: ≤100 mVp-p
Accuracy: High precision, stable output
Display: 3.9-inch TFT LCD (real-time curves)
Features: Data logging + SourceMeter function
Connectivity: USB, RS485, CAN, DB25 (SCPI supported)
Protection: OVP, OCP, OPP, SCP, OTP
Input: 85–265V AC, 50/60Hz
Cooling: Intelligent fan
Design: Industrial benchtop / rack type
Operating Temp: 0°C to 40°C

Warranty: 1 Year

Uses

High-power electronics testing & validation, Industrial load testing & performance analysis
Research & development (R&D) labs, Automated test systems & production lines
Battery testing & charging applications
