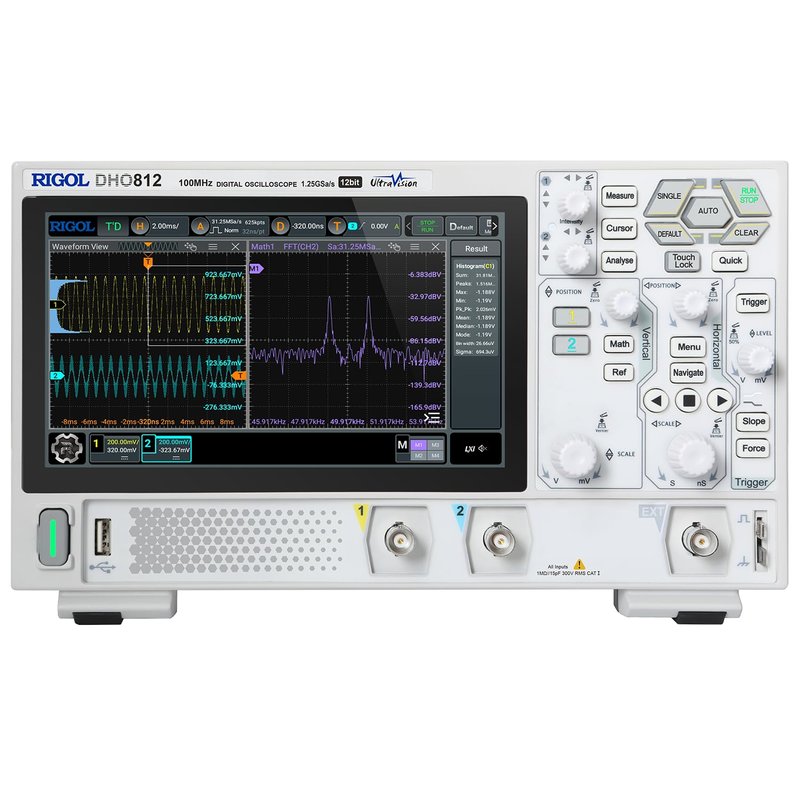

Model: DHO812
Bandwidth: 100 MHz
Channels: 2 Analog Channels
Vertical Resolution: 12 Bit
Sample Rate: 1.25 GSa/s
Memory Depth: 25 Mpts
Waveform Capture Rate: 1,000,000 wfms/s
Display: 7-inch Capacitive Touchscreen (1024 × 600)
Vertical Sensitivity: 500 μV/div to 10 V/div
Protocol Decoding: UART/RS232, SPI, I²C
Interfaces: USB Host, USB Device, LAN, HDMI
Storage: 8 GB Internal Storage
Power Supply: USB-C PD Compatible
Weight: Approx. 1.8 kg
Warranty:
1 Year
Embedded system debugging
Power supply and SMPS analysis
Microcontroller and FPGA development
UART, SPI and I²C protocol analysis
Electronics design and validation
Automotive electronics troubleshooting
Industrial control system maintenance
Educational and engineering laboratories
PCB testing and repair
Signal integrity analysis
Research and development applications
